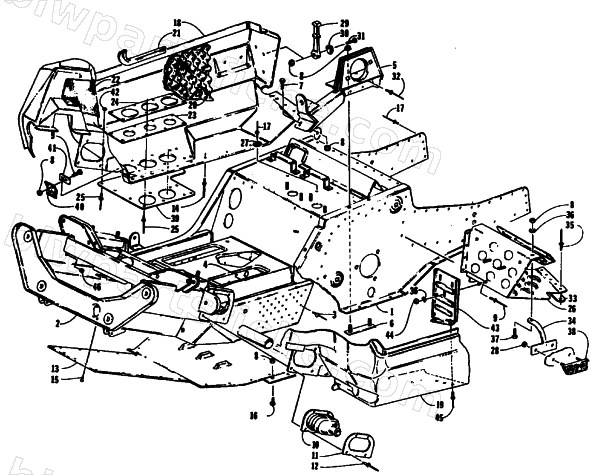

1994 Arctic Cat THUNDERCAT — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1994 THUNDERCAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-202 | FRONT END,CHASSIS | 1 | $599.95 | |
| 2 | 0707-174 | FRONT END-WELDMENT | 1 | $1,428.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 0605-213 | PLATE,BACKING-FRONT COVER | 1 | $15.11 | |
| 5 | 1707-474 | SUPPORT,BEARING-PTD BLK | 1 | $223.95 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 11 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 12 | 8060-711 | RIVET,BLIND-DH SS610 BLK | 1 | $1.50 | |
| 13 | 0616-028 | BELLYPAN-PLASTIC | 1 | $172.95 | |
| 14 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 17 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 18 | 0616-486 | BELLYPAN,OUTER-RH | 1 | $324.95 | |
| 19 | 0616-487 | BELLYPAN,OUTER-LH | 1 | $293.95 | |
| 20 | 0617-158 | FOAM,BELLYPAN-RH | 1 | $14.95 | |
| 20 | 0617-159 | FOAM,BELLYPAN-LH | 1 | $21.95 | |
| 21 | 0706-955 | TRIM,BELLYPAN-10FT ROLL (0619-158) | 1 | $136.95 | |
| 22 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 23 | 0612-301 | SEAL,EXHAUST OUTLET | 1 | $37.95 | |
| 24 | 0612-302 | RING,EXHAUST OUTLET | 1 | $13.95 | |
| 25 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 26 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 26 | 0716-023 | FOOTREST,LH-W/STUDS | 1 | $74.95 | |
| 27 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 28 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 29 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 30 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 31 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 32 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 33 | 0616-368 | PLATE,BACKING-FOOTREST/RIVET | 1 | $1.95 | |
| 34 | 0706-806 | BRACKET,REINFORCEMENT-WELDMENT-RH | 1 | $75.95 | |
| 34 | 0706-807 | BRACKET,REINFORCEMENT-WELDMENT-LH | 1 | $43.95 | |
| 35 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 38 | 0606-704 | BUMPER,POD | 1 | $14.95 | |
| 39 | 0637-062 | EXHAUST SHIELD KIT | 1 | $34.95 | |
| 40 | 0612-278 | DEFLECTOR, EXHAUST OUTLET | 1 | $13.73 | |
| 41 | 0612-359 | PLATE,BACKING-EXHAUST DEFLECTOR | 1 | $13.95 | |
| 42 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 43 | 0616-387 | GUARD,DRIVE BELT-FOOTREST | 1 | $33.95 | |
| 44 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 45 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
