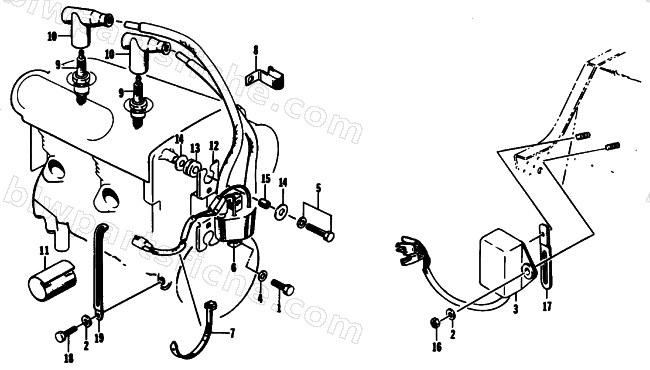

1994 Arctic Cat PANTHER DELUXE — ELECTRICAL
1994 PANTHER DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-029 | BOLT, HEX,M6X20 | 1 | $4.54 | |
| 2 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3006-909 | BOLT,6X30 | 1 | $3.16 | |
| 6 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 7 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 8 | 3003-557 | CLAMP,CORD,M11 | 1 | $10.97 | |
| 9 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 10 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 11 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 12 | 3003-385 | BRACKET, IGNITION (ELEC) | 1 | $28.95 | |
| 13 | 3003-534 | CUSHION,IGN COIL BKT | 1 | $13.95 | |
| 14 | 3005-571 | WASHER(6.5X24X1.6) | 1 | $2.95 | |
| 15 | 3003-666 | SPACER,6MM | 1 | $4.95 | |
| 16 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 19 | 3002-718 | CLAMP,WIRE | 1 | $21.95 |
