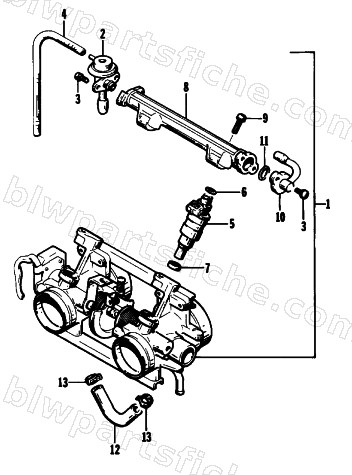

1994 Arctic Cat EXT EFI — THROTTLE BODY ASSEMBLY
1994 EXT EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-913 | BODY ASSY, THROTTLE | 1 | $3,278.95 | |
| 1 | 3004-914 | BODY ASSY, THROTTLE | 1 | $3,027.95 | |
| 1 | 3004-118 | THROTTLE BODY ASS'Y-BLU | 1 | $2,231.95 | |
| 2 | 3004-094 | REGULATOR, FUEL PRESSURE | 1 | $424.95 | |
| 3 | 3007-553 | SCREW | 1 | $2.33 | |
| 4 | 3004-196 | HOSE, AIR VENT-EFI FUEL REG. | 1 | $29.95 | |
| 5 | 3003-958 | INJECTOR-UPPER(RED) | 1 | $627.95 | |
| 5 | 3003-959 | INJECTOR-CENTER(YEL) | 1 | $553.95 | |
| 5 | 3003-960 | INJECTOR-LOWER(BLUE) | 1 | $490.95 | |
| 8 | 3004-401 | PIPE, DELIVERY | 1 | $638.95 | |
| 10 | 3004-120 | PIPE, FUEL INLET | 1 | $422.95 | |
| 11 | 3004-195 | O-RING-(USE 3005-703 KIT) | 1 | $21.95 | |
| 12 | 3004-194 | HOSE, WATER-EFI THROTTLE BODY | 1 | $29.95 | |
| 13 | 3004-193 | CLAMP, HOSE-EFI THROTTLE BODY,M12 | 1 | $4.95 |
