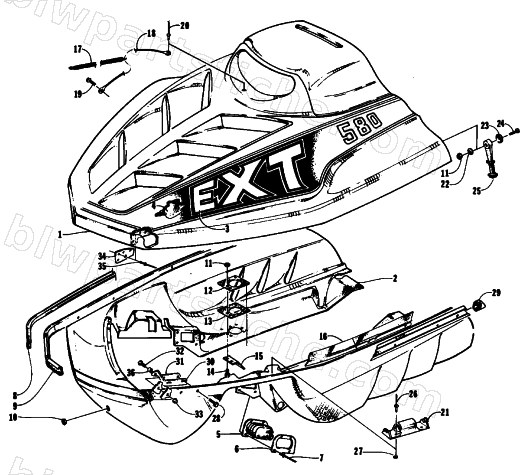

1994 Arctic Cat EXT EFI MOUNTAIN CAT — HOOD AND BELLY PAN ASSEMBLY
1994 EXT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-294 | HOOD W/O DECALS | 1 | $1,515.95 | |
| 1 | 0718-295 | HOOD W/ DECALS(REQ.0120-361 RET PLATE) | 1 | $2,260.95 | |
| 2 | 0616-366 | BELLYPAN | 1 | $626.95 | |
| 3 | 1611-824 | DECAL,HOOD-RH | 1 | $186.95 | |
| 3 | 1611-825 | DECAL,HOOD-LH | 1 | $226.95 | |
| 4 | 0717-056 | FOAM,HOOD-RH | 1 | $38.95 | |
| 4 | 0717-057 | FOAM,HOOD-LH | 1 | $38.95 | |
| 5 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 6 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 7 | 8060-711 | RIVET,BLIND-DH SS610 BLK | 1 | $1.50 | |
| 8 | 0616-700 | INSERT,BUMPER-CTL 124" BLK | 1 | $32.95 | |
| 10 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0612-279 | RING,EXHAUST OUTLET | 1 | $13.95 | |
| 13 | 0612-270 | SEAL,EXHAUST OUTLET | 1 | $31.95 | |
| 14 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 15 | 0612-278 | DEFLECTOR, EXHAUST OUTLET | 1 | $13.73 | |
| 16 | 0616-365 | CHANNEL-HOOD | 1 | $63.95 | |
| 17 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 18 | 0616-326 | CABLE,HOOD - 43" | 1 | $15.11 | |
| 19 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 20 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 21 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 24 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 25 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 26 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 27 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 28 | 2706-636 | BRKT,HINGE-RH-PTD BLK | 1 | $21.95 | |
| 28 | 2706-637 | BRKT,HINGE-LH-PTD BLK | 1 | $21.95 | |
| 29 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 29 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 |
