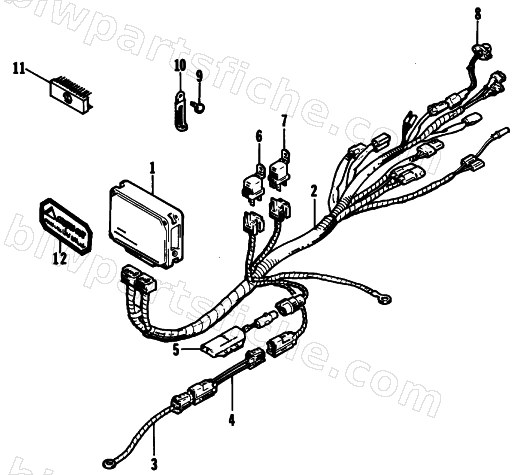

1994 Arctic Cat EXT EFI MOUNTAIN CAT — ECU AND ECU HARNESS ASSEMBLIES
1994 EXT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-942 | ECU, RED (33900-90B24-0A0) | 1 | $2,719.95 | |
| 1 | 3004-943 | ECU, YEL (33900-90B24-0B0) | 1 | $2,735.95 | |
| 1 | 3004-944 | ECU, BLUE (33900-90B24-0C0) | 1 | $2,510.95 | |
| 2 | 3004-253 | HARNESS, MAIN-EFI | 1 | $1,318.95 | |
| 3 | 3003-946 | LEAD, BATT PLUS | 1 | $48.95 | |
| 7 | 3003-883 | RELAY ASSY,CONTROLLER | 1 | $148.95 | |
| 8 | 3004-018 | SENSOR, AIR TEMP. | 1 | $148.95 | |
| 9 | 3003-943 | BOLT, 4X8 | 1 | $19.25 | |
| 10 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 11 | 3004-309 | EPROM-RED-ETHANOL | 1 | $513.95 | |
| 11 | 3004-903 | EPROM-YELLOW SPECIAL LEAN/95 START | 1 | $488.95 | |
| 11 | 3004-311 | EPROM-BLU-ETHANOL | 1 | $422.95 |
