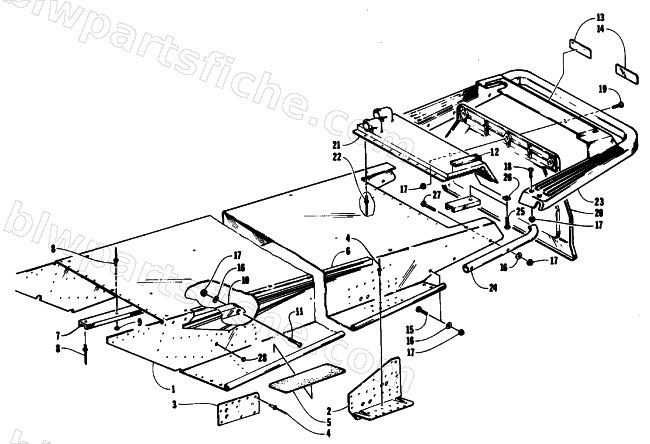

1994 Arctic Cat EXT 580 MOUNTAIN CAT WAVE — TUNNEL AND REAR BUMPER
1994 EXT 580 MOUNTAIN CAT WAVE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-253 | TUNNEL ASS'Y | 1 | $905.95 | |
| 2 | 0706-730 | BRKT,SUSPENSION-WELDED-RH | 1 | $47.95 | |
| 2 | 0706-731 | BRKT,SUSPENSION-WELDED-LH | 1 | $52.95 | |
| 3 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 6 | 1611-826 | DECAL,TUNNEL RH | 1 | $58.95 | |
| 6 | 1611-827 | DECAL,TUNNEL LH | 1 | $58.95 | |
| 7 | 0706-740 | WEARSTRIP,TUNNEL | 1 | $46.95 | |
| 8 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0604-497 | GUIDE,TRACK | 1 | $20.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-615 | SCREW,MACH-CRTH 1/4-20X1.50 G2 BE | 1 | $1.95 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 0616-612 | SNOWFLAP,30 DEG.FLIP UP WHITE | 1 | $54.95 | |
| 21 | 0706-564 | HEAT EXCHANGER, REAR-WELDMT | 1 | $226.95 | |
| 22 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 23 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 24 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 25 | 8009-577 | SCREW,MACH-CRPH 1/4-20X.50 G2 Z&Y | 1 | $0.15 | |
| 26 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 | |
| 27 | 0623-032 | SCREW, CAP -1/4-20X1 5/8 | 1 | $0.95 | |
| 28 | 0606-983 | PLUG,BODY 3/8-BLACK | 1 | $1.92 |
