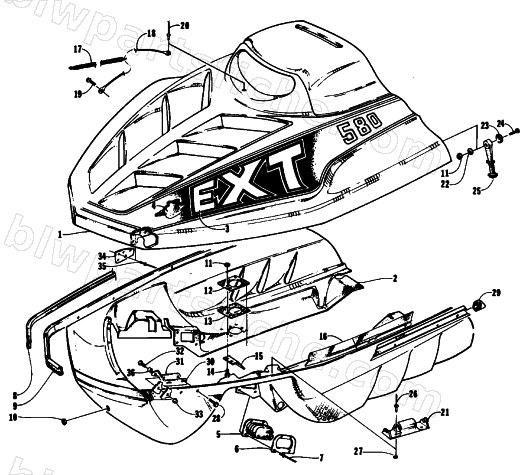

1994 Arctic Cat EXT 580 MOUNTAIN CAT WAVE — HOOD AND BELLY PAN ASSEMBLY
1994 EXT 580 MOUNTAIN CAT WAVE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-298 | HOOD W/O DECALS | 1 | $1,652.95 | |
| 1 | 0718-293 | HOOD W/ DECALS | 1 | $1,835.95 | |
| 2 | 0616-366 | BELLYPAN | 1 | $626.95 | |
| 3 | 1611-824 | DECAL,HOOD-RH | 1 | $186.95 | |
| 3 | 1611-825 | DECAL,HOOD-LH | 1 | $226.95 | |
| 4 | 0717-056 | FOAM,HOOD-RH | 1 | $38.95 | |
| 4 | 0717-057 | FOAM,HOOD-LH | 1 | $38.95 | |
| 5 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 6 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 7 | 8060-711 | RIVET,BLIND-DH SS610 BLK | 1 | $1.50 | |
| 8 | 0616-700 | INSERT,BUMPER-CTL 124" BLK | 1 | $32.95 | |
| 10 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0612-279 | RING,EXHAUST OUTLET | 1 | $13.95 | |
| 13 | 0612-270 | SEAL,EXHAUST OUTLET | 1 | $31.95 | |
| 14 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 15 | 0612-278 | DEFLECTOR, EXHAUST OUTLET | 1 | $13.73 | |
| 16 | 0616-365 | CHANNEL-HOOD | 1 | $63.95 | |
| 17 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 18 | 0616-326 | CABLE,HOOD - 43" | 1 | $15.11 | |
| 19 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 20 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 24 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 25 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 26 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 27 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 28 | 2706-636 | BRKT,HINGE-RH-PTD BLK | 1 | $21.95 | |
| 28 | 2706-637 | BRKT,HINGE-LH-PTD BLK | 1 | $21.95 | |
| 29 | 0616-396 | CAP,BUMPER END RH | 1 | $6.75 | |
| 29 | 0616-397 | CAP,BUMPER END LH | 1 | $6.75 |
