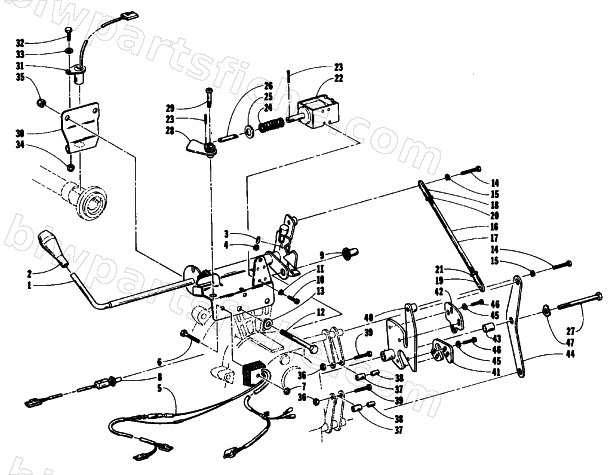

1994 Arctic Cat CHEETAH 440 2-SPEED — SHIFT LEVER ASSEMBLY
1994 CHEETAH 440 2-SPEED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0702-241 | LEVER,SHIFT-WELD'T | 1 | $335.95 | |
| 2 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 4 | 0623-298 | SNAP RING,EXTL-.25 DIA | 1 | $0.75 | |
| 5 | 0630-044 | MODULE,SHIFT LOCK | 1 | $149.95 | |
| 6 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0630-011 | SWITCH, ALARM | 1 | $60.95 | |
| 9 | 0630-013 | BOOT,SWITCH-REVERSE | 1 | $20.63 | |
| 11 | 8051-123 | WASHER,SPR LOCK-#8 .167X.293X.040 BLK | 1 | $0.15 | |
| 12 | 8002-236 | SCREW,CAP-HH 3/8-16 X5.00 G5 Z&Y | 1 | $1.49 | |
| 13 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 14 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 15 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 16 | 0702-244 | LINK,SHIFT ASSY | 1 | $138.95 | |
| 17 | 0602-688 | ROD,SHIFT LINKAGE | 1 | $47.95 | |
| 18 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 19 | 0602-322 | ROD END,5/16-24-RH | 1 | $29.95 | |
| 20 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 21 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 | |
| 22 | 0630-042 | SOLENOID,SHIFT LOCK | 1 | $155.95 | |
| 23 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 24 | 0602-718 | SPRING,COMPRESSION-SOLENOID | 1 | $7.95 | |
| 25 | 8050-332 | WASHER,FLAT- 1/2 X 1.000 X .063 Z&Y | 1 | $5.09 | |
| 26 | 0602-720 | LINK,SHIFT LOCK | 1 | $15.95 | |
| 27 | 0602-698 | SCREW,CAP-HSH-SHLDR 3/8X2 | 1 | $8.95 | |
| 28 | 0702-252 | ARM,SHIFT LOCK ASSY | 1 | $129.95 | |
| 30 | 0602-714 | BRKT,MTG MOTION SENSOR | 1 | $42.95 | |
| 31 | 0630-045 | SENSOR,SHIFT LOCK ASSY | 1 | $11.95 | |
| 32 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 33 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 34 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 35 | 0124-060 | NUT,CROWNLOCK 3/8-16 UNC Z&Y | 1 | $0.85 | |
| 36 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 37 | 0602-696 | BEARING,NEEDLE ROLLER 5/16 | 1 | $26.95 | |
| 38 | 0602-697 | SLEEVE,SHIFT ROLLER | 1 | $13.95 | |
| 39 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 40 | 0702-239 | CAM,SHIFT-WELD'T | 1 | $262.95 | |
| 41 | 0602-685 | PLATE,CAM-ADJUST-REVERSE | 1 | $65.95 | |
| 42 | 0602-684 | PLATE,CAM-ADJUST-2-SPEED | 1 | $45.95 | |
| 43 | 0602-699 | SPACER,SUPPORT PLATE | 1 | $14.95 | |
| 44 | 0602-693 | PLATE,SUPPORT SHIFT FORK | 1 | $37.95 | |
| 45 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 46 | 8006-487 | SCREW, CAP-HSH 1/4-28X.50 Z&Y | 1 | $1.95 | |
| 47 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 |
