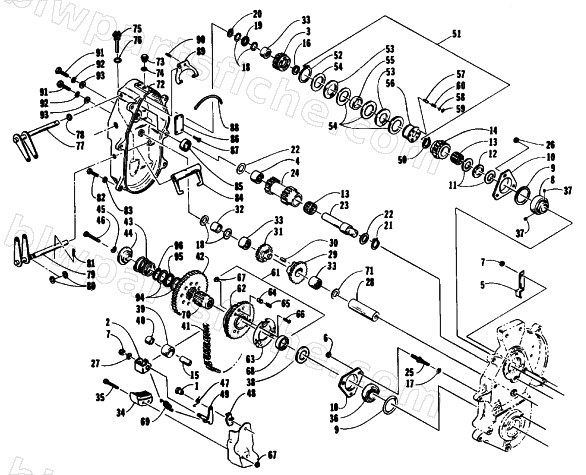

1994 Arctic Cat CHEETAH 440 2-SPEED — 2 SPEED DROPCASE ASSEMBLY
1994 CHEETAH 440 2-SPEED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0602-405 | BUSHING,HEX HEAD-TIGHTENER ARM | 1 | $74.95 | |
| 2 | 0602-390 | BRACKET,CHAIN ROLLER | 1 | $68.95 | |
| 3 | 0702-146 | GEAR 19T-PRIMARY DRIVE ASSY | 1 | $390.95 | |
| 5 | 0702-553 | BRACKET, CHAIN BACKING-WELDT(0602-466) | 1 | $56.95 | |
| 6 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 7 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 8 | 0602-355 | BEARING,.875 W/LOCKING HEX SET SCREWS | 1 | $113.95 | |
| 9 | 0107-003 | SEAL,O RING .093 | 1 | $1.37 | |
| 10 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 11 | 0602-217 | WASHER,THRUST .875IDX.060 | 1 | $5.95 | |
| 13 | 0602-205 | BEARING, CAGED-.875 X 1.00 | 1 | $38.95 | |
| 14 | 0602-470 | SPROCKET,DRIVE-19T-3/8X.520/GEAR 23T | 1 | $383.95 | |
| 15 | 0602-398 | SHAFT,CHAIN ROLLER | 1 | $34.95 | |
| 16 | 0602-214 | WASHER,THRUST .625IDX.060 | 1 | $10.97 | |
| 17 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 18 | 0602-215 | WASHER, THRUST-.625 ID X.030 X 1.105OD | 1 | $3.85 | |
| 19 | 0602-208 | BEARING,THRUST .625 ID | 1 | $13.95 | |
| 20 | 0623-237 | SNAP RING,EXTL-5/8 DIA | 1 | $1.92 | |
| 21 | 0623-238 | SNAP RING,EXTL-3/4 DIA | 1 | $1.95 | |
| 23 | 0602-418 | SHAFT,IDLER 16T/20T GEAR TRANSFER | 1 | $208.95 | |
| 25 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 26 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 27 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 28 | 0602-189 | SHAFT,REVERSE IDLER | 1 | $73.95 | |
| 29 | 0702-247 | SPROCKET 24T IDLER-ASSY | 1 | $143.95 | |
| 30 | 0602-704 | PIN,ALIGNING-IDLER GEAR | 1 | $5.78 | |
| 32 | 0602-695 | SPACER,REVERSE-IDLER | 1 | $19.25 | |
| 33 | 0602-018 | BEARING,DC-.625 | 1 | $19.25 | |
| 34 | 0602-561 | BLOCK,RATCHET-CHAIN ADJUSTER-MACHINED | 1 | $116.95 | |
| 35 | 8006-406 | SCREW, CAP-HSH 10-32X1.75 Z&Y | 1 | $1.92 | |
| 36 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 37 | 0623-216 | SCREW,SET 1/4-28X.25 TYPE G | 1 | $0.95 | |
| 38 | 0602-012 | SPACER, EXT SHAFT-1.0 X 2.0 X .155TH | 1 | $19.25 | |
| 39 | 0702-129 | ROLLER ASSY-CHAIN TIGHTENER | 1 | $60.95 | |
| 40 | 0602-383 | BEARING,CHAIN TIGHTENER-1/2 ID X .75 | 1 | $3.95 | |
| 41 | 1602-041 | CHAIN, 70P - 13 WIDE | 1 | $117.95 | |
| 42 | 0702-048 | GEAR, 55T REVERSE-ASSY | 1 | $429.95 | |
| 43 | 0602-028 | SPRING, RETURN | 1 | $22.01 | |
| 44 | 1602-047 | RETAINER, EXTENSION SHAFT | 1 | $77.95 | |
| 45 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 48 | 0602-404 | BRACKET,SPRING-CHAIN ROLLER | 1 | $31.95 | |
| 49 | 0702-220 | ARM,TIGHTENER-WELD'T | 1 | $49.95 | |
| 50 | 0623-272 | SNAP RING,EXTL(INVERTED)-7/8 DIA | 1 | $1.92 | |
| 51 | 0702-143 | ENGAGEMENT ASSY-TOP | 1 | $687.95 | |
| 52 | 0623-146 | SNAP RING,EXTL-2.125 DIA | 1 | $9.59 | |
| 53 | 0602-212 | BEARING,THRUST 2.125 ID | 1 | $23.39 | |
| 54 | 0602-219 | WASHER,THRUST 2.125IDX.060 | 1 | $19.25 | |
| 55 | 0602-277 | SPACER,THRUST BEARING | 1 | $42.95 | |
| 56 | 0602-410 | HOUSING,ENGAGEMENT PINS | 1 | $155.95 | |
| 57 | 0602-424 | PIN,SLIP - 2-SPEED | 1 | $33.95 | |
| 58 | 0602-182 | PLUG,RETAINER-PIN SPRING | 1 | $16.49 | |
| 59 | 0602-201 | SNAP RING,INTERNAL-.375 DIA. | 1 | $1.23 | |
| 60 | 0602-202 | SPRING,COMPRESSION | 1 | $19.95 | |
| 61 | 0702-170 | SPROCKET, 39T-ASSY | 1 | $275.95 | |
| 63 | 0602-144 | RETAINER,SPRING | 1 | $13.73 | |
| 64 | 0602-133 | PIN,SLIP-.993 LG | 1 | $17.87 | |
| 65 | 0602-138 | SPRING,COMPRESSION-REVERSE | 1 | $3.02 | |
| 66 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 67 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 68 | 0602-016 | BEARING,J-2012 DC-1.250 | 1 | $23.39 | |
| 70 | 1602-048 | SHAFT, EXTENSION | 1 | $129.95 | |
| 71 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 72 | 0702-192 | COVER, DROPCASE-REV/2SPD- W/BEARING | 1 | $859.95 | |
| 73 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 74 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 75 | 0602-463 | STICK,CHECK-OIL LEVEL | 1 | $8.21 | |
| 76 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 77 | 0702-242 | SHAFT,SHIFT FORK 2 SPD WELD,T | 1 | $100.95 | |
| 78 | 0670-025 | TANK,OIL 87JAG | 1 | $93.95 | |
| 79 | 0702-243 | SHAFT,SHIFT FORK REV WELD.T | 1 | $118.95 | |
| 80 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 81 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 82 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 83 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 84 | 0602-085 | FORK,SHIFT-MACHINED | 1 | $96.95 | |
| 85 | 0602-206 | BEARING,BALL .625 ID | 1 | $128.95 | |
| 86 | 0602-221 | COVER,OIL VENT-DROPCASE COVER | 1 | $6.47 | |
| 87 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 88 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 89 | 0602-184 | FORK,SHIFT-MACH-2 SPEED | 1 | $100.95 | |
| 90 | 8070-309 | PIN,SPRING-3/16 X 11/16 SLOTTED P&O | 1 | $0.95 | |
| 91 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 92 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 93 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 94 | 0602-023 | WASHER,THRUST-2.25 | 1 | $15.11 | |
| 95 | 0602-022 | BEARING,THRUST | 1 | $23.39 | |
| 96 | 0602-024 | RING,RETAINING | 1 | $3.99 |
