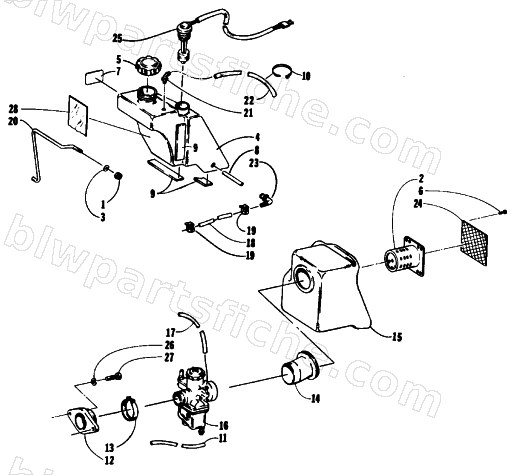

1994 Arctic Cat CHEETAH 340 — OIL TANK, CARBURETOR, FUEL PUMP AND SILENCER
1994 CHEETAH 340
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 2 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 3 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-079 | EXTENSION,OIL TANK FITTING | 1 | $14.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 13 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 14 | 0670-142 | BOOT,CARB/AIRBOX | 1 | $32.95 | |
| 15 | 0670-342 | SILENCER,AIR-FABR | 1 | $152.95 | |
| 16 | 0670-337 | CARB, VM32-290 | 1 | $324.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 19 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 21 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 22 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 23 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 24 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 25 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 | |
| 26 | 3423-204 | WASHER | 1 | $1.95 | |
| 27 | 0623-116 | BOLT,SOCKET LOW HEAD M8 X 1.25 X 25 Y&Z | 1 | $4.95 | |
| 28 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 |
