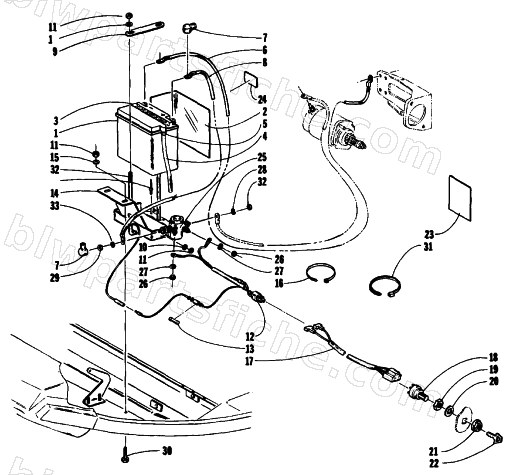

1994 Arctic Cat CHEETAH 340 — BATTERY, SOLENOID, AND CABLES
1994 CHEETAH 340
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-045 | BATTERY PKG (0645-165) | 1 | $124.95 | |
| 2 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 3 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 6 | 0645-080 | CABLE,BATT-GRD 30 | 1 | $30.95 | |
| 7 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 8 | 0645-015 | CABLE,BATT-SOL 14.3 | 1 | $53.95 | |
| 9 | 0645-086 | STRAP,BATTERY-TOP | 1 | $15.95 | |
| 10 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0686-042 | HARNESS,ELECTRIC START | 1 | $68.95 | |
| 13 | 0630-014 | FUSE,10 AMP | 1 | $10.95 | |
| 14 | 0745-023 | TRAY,BATTERY-WELDMT | 1 | $103.95 | |
| 15 | 0645-061 | ROD,HOLDING-BATTERY | 1 | $19.25 | |
| 16 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 18 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 19 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 20 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 21 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 22 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 23 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 24 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 25 | 0645-078 | SOLENOID,ELECTRIC START(COMES W/ KIT 1) | 1 | $106.95 | |
| 26 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 27 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 28 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 29 | 8043-452 | NUT,5/16-24 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.95 | |
| 30 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 31 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 32 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
