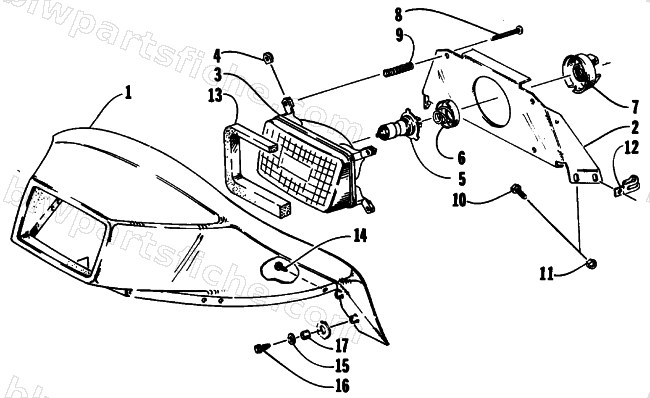

1993 Arctic Cat PROWLER 2-UP — HEADLIGHT AND HEADLIGHT POD
1993 PROWLER 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0606-817 | POD,HEADLIGHT-MOLDED | 1 | $193.95 | |
| 2 | 0606-621 | BRACKET,HEADLIGHT | 1 | $58.95 | |
| 3 | 0609-104 | HEADLAMP-SLOPED | 1 | $223.95 | |
| 4 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 5 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 6 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 7 | 0609-114 | CAP,BULB | 1 | $4.95 | |
| 8 | 0623-388 | SCREW,CAP HWH-#10-32 X 2.00 Z&Y | 1 | $1.95 | |
| 9 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 10 | 0623-296 | SCREW,MACH-HWH 10-24X1.0-Z&Y | 1 | $0.35 | |
| 11 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 0617-073 | SEAL,HEADLIGHT | 1 | $29.95 | |
| 14 | 0623-280 | SCREW,SELF TAP-HWH #8X5/8 TYPE A | 1 | $0.68 | |
| 15 | 0623-290 | WASHER,FLAT-#8 X 5/8 X .0747 | 1 | $0.95 | |
| 16 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 17 | 0606-805 | BUSHING,MTG-HEADLIGHT POD | 1 | $19.25 |
