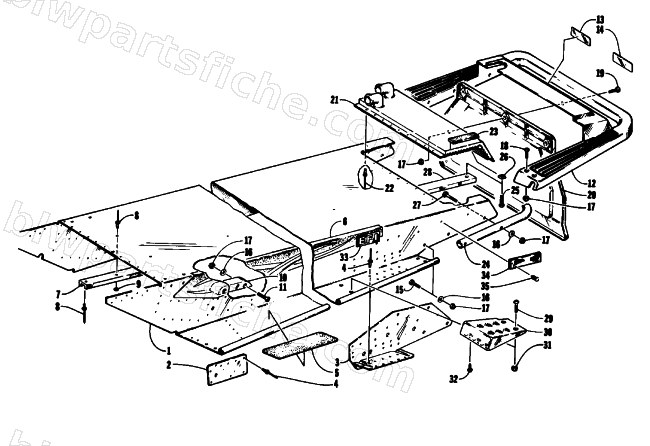

1993 Arctic Cat PANTERA — TUNNEL AND REAR BUMPER
1993 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-254 | TUNNEL ASS'Y | 1 | $683.95 | |
| 2 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 3 | 0706-730 | BRKT,SUSPENSION-WELDED-RH | 1 | $47.95 | |
| 3 | 0706-731 | BRKT,SUSPENSION-WELDED-LH | 1 | $52.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 6 | 1611-372 | DECAL,TUNNEL-RH | 1 | $29.95 | |
| 6 | 1611-373 | DECAL,TUNNEL-LH | 1 | $29.95 | |
| 7 | 0706-582 | WEARSTRIP,TUNNEL | 1 | $41.95 | |
| 8 | 8060-488 | RIVET,BLIND-DH SS56 ZINC | 1 | $0.40 | |
| 9 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 10 | 0604-497 | GUIDE,TRACK | 1 | $20.95 | |
| 11 | 0623-268 | SCREW,FLAT HEAD-1/4-20 X 1.50 | 1 | $0.35 | |
| 12 | 0716-223 | BUMPER W/STEEL INSERT | 1 | $181.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 8007-615 | SCREW,MACH-CRTH 1/4-20X1.50 G2 BE | 1 | $1.95 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 21 | 0706-564 | HEAT EXCHANGER, REAR-WELDMT | 1 | $226.95 | |
| 22 | 0123-784 | RIVET3/16X1/4 SSPQ-64 | 1 | $1.19 | |
| 24 | 2706-600 | INSERT,BUMPER-PTD BLK | 1 | $64.95 | |
| 25 | 8009-577 | SCREW,MACH-CRPH 1/4-20X.50 G2 Z&Y | 1 | $0.15 | |
| 26 | 0623-076 | NUT,SQUARE 1/4-20 | 1 | $22.01 | |
| 27 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 28 | 0706-581 | WEARSTRIP,TUNNEL-REAR | 1 | $5.95 | |
| 30 | 0606-698 | FOOTREST,REAR-R.H. | 1 | $33.95 | |
| 30 | 0606-699 | FOOTREST,REAR-L.H. | 1 | $33.95 | |
| 31 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 33 | 1611-536 | DECAL,TUNNEL EFI | 1 | $3.95 | |
| 34 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 35 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 |
