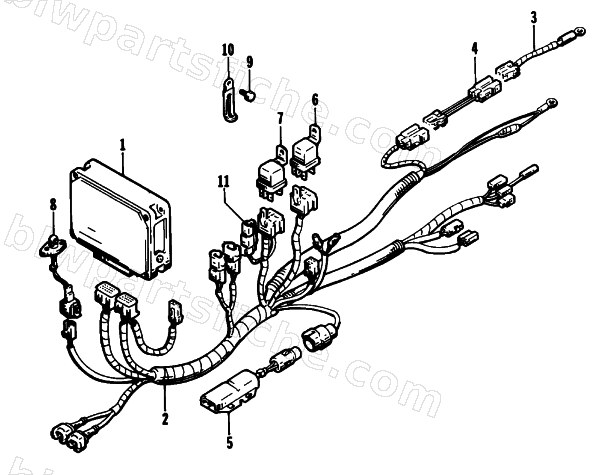

1993 Arctic Cat PANTERA — ECU AND ECU HARNESS ASSEMBLIES
1993 PANTERA
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-030 | ECU-UPPER (RED) | 1 | $3,048.95 | |
| 1 | 3004-031 | ECU-CENTER (YELLOW) | 1 | $2,828.95 | |
| 2 | 3004-145 | HARNESS, FUEL INJECTION | 1 | $1,293.95 | |
| 3 | 3003-946 | LEAD, BATT PLUS | 1 | $48.95 | |
| 7 | 3003-883 | RELAY ASSY,CONTROLLER | 1 | $148.95 | |
| 8 | 3004-018 | SENSOR, AIR TEMP. | 1 | $148.95 | |
| 9 | 3002-278 | CLAMP,M6 | 1 | $3.95 | |
| 10 | 3003-943 | BOLT, 4X8 | 1 | $19.25 |
