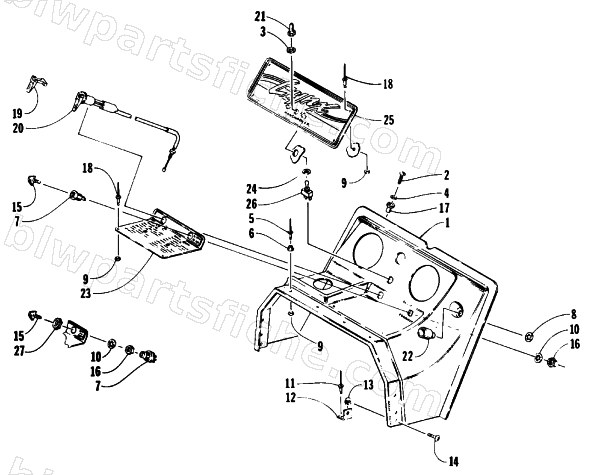

1993 Arctic Cat LYNX DELUXE — SWITCH, CHOKE, AND CONSOLE ASSEMBLY
1993 LYNX DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 3 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 4 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 5 | 8060-286 | RIVET,BLIND-DH SS44 ZINC | 1 | $0.68 | |
| 6 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 7 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 8 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 | |
| 9 | 0123-352 | WSHR,FLAT .129/.133X5/16 X 22 GA Z&Y | 1 | $0.95 | |
| 10 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 13 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 15 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 16 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 17 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 18 | 8060-266 | RIVET,BLIND-DH AS44 BLK | 1 | $0.15 | |
| 19 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 20 | 0109-722 | CABLE,CHOKE-23'' | 1 | $86.95 | |
| 22 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 24 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 25 | 1611-357 | PLATE,CONSOLE-SWITCH-DELUXE | 1 | $31.95 | |
| 26 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 27 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 |
