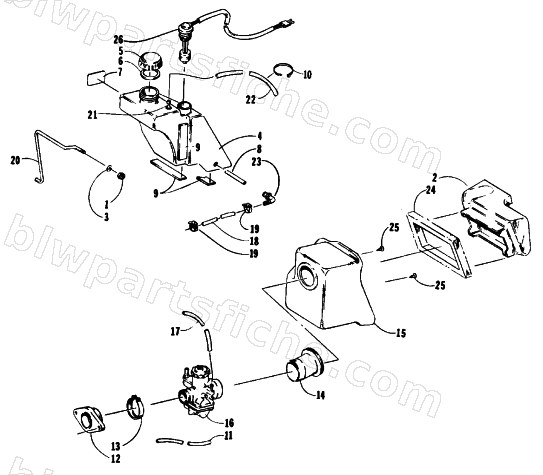

1993 Arctic Cat LYNX DELUXE — OIL TANK, CARBURETOR, FUEL PUMP AND SILENCER
1993 LYNX DELUXE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-079 | EXTENSION,OIL TANK FITTING | 1 | $14.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 13 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 14 | 0670-142 | BOOT,CARB/AIRBOX | 1 | $32.95 | |
| 15 | 0670-039 | SILENCER,AIR-FABR | 1 | $66.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 19 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 21 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 22 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 23 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 25 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 |
