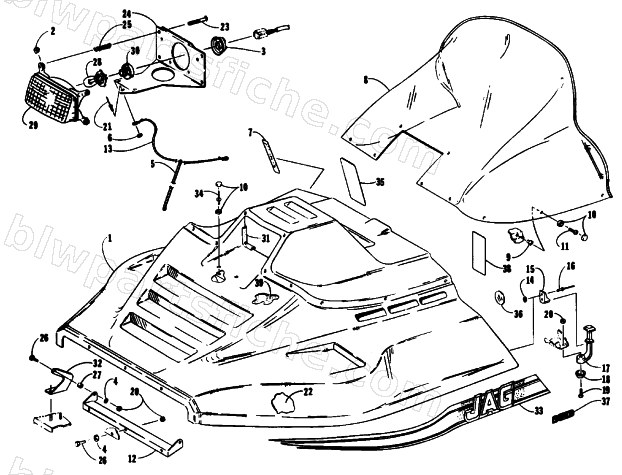

1993 Arctic Cat JAG AFS LT 1 SPEED — HOOD ASSEMBLY
1993 JAG AFS LT 1 SPEED
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-243 | HOOD W/ DECALS | 1 | $1,040.95 | |
| 2 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 | |
| 3 | 0609-114 | CAP,BULB | 1 | $4.95 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 0623-199 | SPRING,EXTENSION | 1 | $6.47 | |
| 6 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 7 | 0611-575 | DECAL,GAUGE-OIL INJECTION | 1 | $13.95 | |
| 8 | 0606-780 | WINDSHIELD,SMOKE | 1 | $142.95 | |
| 9 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 10 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 11 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 12 | 0706-055 | SUPPORT,HOOD HINGE | 1 | $64.95 | |
| 13 | 0606-121 | HOOD CABLE - 34" | 1 | $15.11 | |
| 14 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 15 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 17 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 18 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 19 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 22 | 0617-064 | FOAM,HOOD-RH | 1 | $24.95 | |
| 23 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 24 | 0606-479 | BRACKET,HEADLIGHT | 1 | $33.95 | |
| 25 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 26 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 29 | 0609-104 | HEADLAMP-SLOPED | 1 | $223.95 | |
| 30 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 31 | 0617-073 | SEAL,HEADLIGHT | 1 | $29.95 | |
| 32 | 0606-042 | HINGE,PAN-RH | 1 | $12.95 | |
| 32 | 0606-043 | HINGE,PAN-LH | 1 | $7.95 | |
| 33 | 1611-442 | DECAL,HOODSIDE-RH | 1 | $76.95 | |
| 33 | 1611-443 | DECAL,HOODSIDE-LH | 1 | $76.95 | |
| 34 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 35 | 1611-444 | DECAL,CAUTION-REVERSE | 1 | $21.95 | |
| 38 | 1611-407 | DECAL,WARNING-HOOD | 1 | $19.95 | |
| 39 | 0717-035 | FOAM,HOOD-REAR-CENTER | 1 | $20.95 | |
| 39 | 0717-036 | FOAM,HOOD-CENTER | 1 | $6.95 | |
| 39 | 0717-037 | FOAM,HOOD-DUCT INLET | 1 | $3.95 | |
| 39 | 0717-038 | FOAM,HOOD-DUCT-TOP | 1 | $3.95 | |
| 39 | 0717-039 | FOAM,HOOD-DUCT-BOTTOM | 1 | $1.95 |
