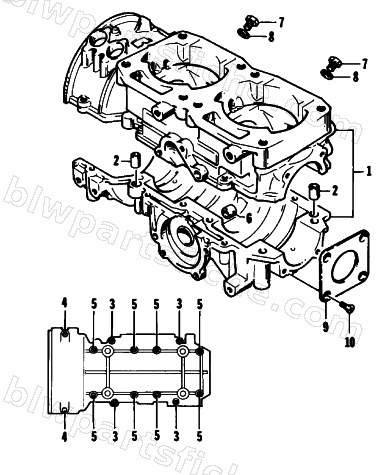

1993 Arctic Cat EXT EFI MOUNTAIN CAT — CRANKCASE
1993 EXT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-406 | CRANKCASE ASSY (550 L/C) | 1 | $1,589.95 | |
| 2 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 3 | 3004-442 | BOLT, 6X40 | 1 | $2.95 | |
| 4 | 3004-197 | BOLT,8X65 | 1 | $5.95 | |
| 5 | 3004-414 | BOLT, 8X70 | 1 | $3.85 | |
| 6 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 7 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 8 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 9 | 3003-444 | PLATE, OIL SEAL 88 650 WILDCAT | 1 | $52.95 | |
| 10 | 3007-393 | SCREW,M6X16 | 1 | $2.06 |
