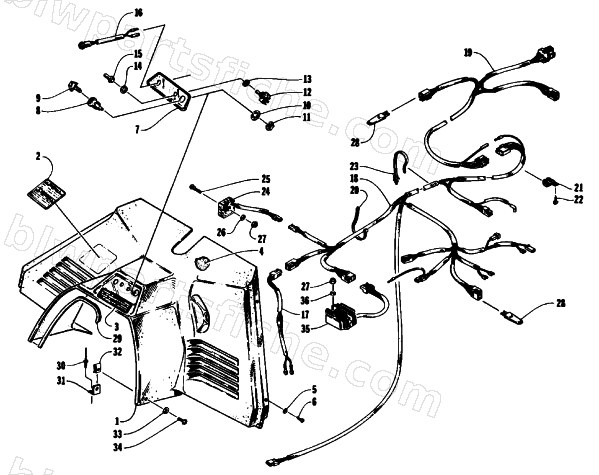

CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1993 EXT EFI MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0616-039 | CONSOLE | 1 | $222.95 | |
| 2 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 3 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 6 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 7 | 1611-325 | PLATE,CONSOLE-SWITCHES | 1 | $13.73 | |
| 8 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 9 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 10 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 11 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 12 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 13 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 14 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 15 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 16 | 0609-145 | LIGHT,CHARGE INDICATOR | 1 | $35.95 | |
| 17 | 0686-151 | HARNESS,BATTERY FUSE | 1 | $29.95 | |
| 18 | 0686-130 | HARNESS,MAIN WIRING | 1 | $173.95 | |
| 19 | 0686-173 | HARNESS, HOOD-HEADLIGHT & INSTRUMENTS | 1 | $176.95 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 22 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 23 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 24 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 25 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 26 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 27 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 29 | 0706-780 | TRIM,CONSOLE-62 LG. | 1 | $16.95 | |
| 30 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 32 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 33 | 0124-076 | WSHR, FLAT .271X.635X.051 BL PHOS AND OI | 1 | $0.15 | |
| 35 | 3007-912 | REGULATOR,VOLTAGE-DC(15V) | 1 | $383.95 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 |
