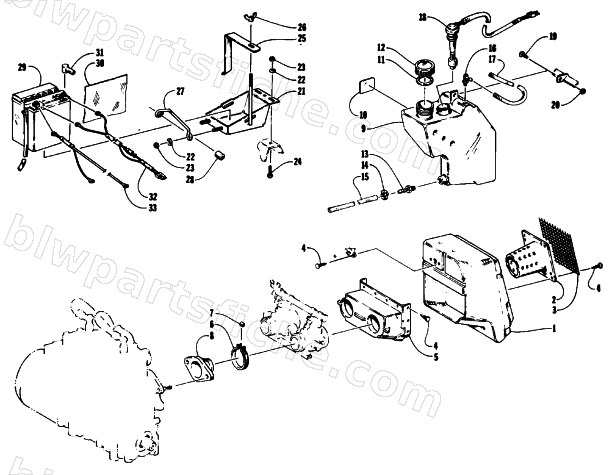

1993 Arctic Cat EXT EFI MOUNTAIN CAT — AIR SILENCER, BATTERY, AND OIL TANK
1993 EXT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-293 | SILENCER,AIR | 1 | $147.95 | |
| 2 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 3 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 4 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 5 | 0670-221 | BOOT,AIR SILENCER | 1 | $66.95 | |
| 6 | 0670-200 | CLAMP,CARB FLANGE-VM40 W/SPACER | 1 | $24.95 | |
| 7 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 8 | 0670-198 | FLANGE,CARB-40MM W/CLAMP | 1 | $84.95 | |
| 9 | 0670-244 | TANK,OIL W/INSERTS | 1 | $134.95 | |
| 10 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 11 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 12 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 13 | 0670-292 | FITTING,COOLANT TANK | 1 | $0.45 | |
| 14 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 15 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 16 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 17 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 18 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 20 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0745-041 | TRAY,BATTERY-WELDMENT | 1 | $71.95 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 26 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 27 | 0645-156 | BRACKET, SUPPORT-BATTERY TRAY | 1 | $15.11 | |
| 28 | 0645-158 | SPACER, BATT SUPPORT | 1 | $2.95 | |
| 29 | 0745-040 | BATTERY PKG(0645-063) | 1 | $113.95 | |
| 30 | 0645-102 | FOIL,4X5.75-HEAT SHIELD-TOP | 1 | $3.95 | |
| 31 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 32 | 0686-151 | HARNESS,BATTERY FUSE | 1 | $29.95 | |
| 34 | 0630-014 | FUSE,10 AMP | 1 | $10.95 |
