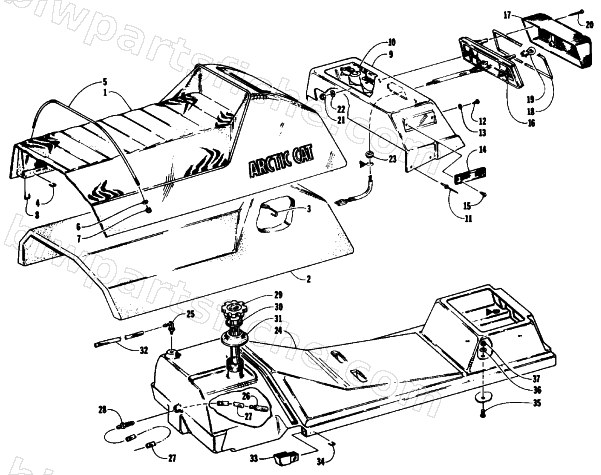

1993 Arctic Cat EXT 580 MOUNTAIN CAT — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLIES
1993 EXT 580 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0706-844 | COVER, SEAT W/ARCTIC CAT | 1 | $523.95 | |
| 2 | 0706-819 | FOAM,SEAT CUSHION | 1 | $219.95 | |
| 6 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 7 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 9 | 0616-022 | COVER,TUNNEL EXTENSION | 1 | $128.95 | |
| 10 | 1611-629 | DECAL,MOUNTAIN CAT | 1 | $51.95 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 14 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 15 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 16 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 17 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 18 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 19 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 20 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 21 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 24 | 0770-059 | TANK,GAS-ASSY | 1 | $247.95 | |
| 25 | 0670-242 | FITTING,VENT-90 DEGREE | 1 | $3.95 | |
| 26 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 27 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 27 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 28 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 29 | 0670-202 | CAP,GAS-W/GAUGE {10.25"} | 1 | $82.95 | |
| 30 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 31 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 32 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 33 | 0616-062 | PLUG,SEATBASE-RIGHT | 1 | $3.57 | |
| 33 | 0616-063 | PLUG,SEATBASE-LEFT | 1 | $3.95 | |
| 35 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 37 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
