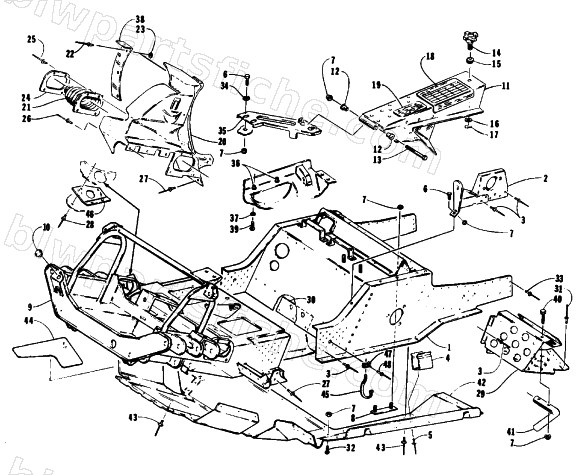

1993 Arctic Cat EXT 580 MOUNTAIN CAT — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1993 EXT 580 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-160 | FRONT END-CHASSIS-ALUM. | 1 | $621.95 | |
| 2 | 0707-088 | SUPPORT,BEARING-WELDMT | 1 | $113.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 5 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 6 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 9 | 0707-142 | FRONT END-WELDMT | 1 | $932.95 | |
| 10 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 12 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 14 | 0607-095 | KNOB,THREADED MALE STUD | 1 | $24.77 | |
| 15 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 16 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0607-096 | RETAINER,KNOB-CLUTCH SHLD | 1 | $20.63 | |
| 18 | 1611-597 | DECAL,JET CHART-93 EXT 580 MC | 1 | $17.95 | |
| 19 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 20 | 0606-974 | FENDER,INNER-RH | 1 | $213.95 | |
| 20 | 0616-031 | FENDER,INNER-LH | 1 | $91.95 | |
| 21 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 22 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 23 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 24 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 25 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 26 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 27 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 28 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 29 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 29 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 30 | 0605-161 | PLATE,BACKING-FRONT COVER | 1 | $6.95 | |
| 31 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 33 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 34 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 35 | 0707-107 | BRACKET,MTG-CLUTCH SHIELD WELD'T | 1 | $32.95 | |
| 36 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 38 | 0616-012 | CHANNEL,POD-RH | 1 | $10.95 | |
| 38 | 0616-013 | CHANNEL,POD-LH | 1 | $10.95 | |
| 39 | 0623-226 | SCREW,SELF TAP- #10-32 X 7/8 TYPE F B | 1 | $0.35 | |
| 40 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 41 | 0706-845 | TUBE,POD BUMPER | 1 | $13.73 | |
| 42 | 0606-962 | BELLYPAN,PLASTIC | 1 | $255.95 | |
| 44 | 0606-671 | FOIL,BELLYPAN | 1 | $4.95 | |
| 45 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 47 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 48 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 |
