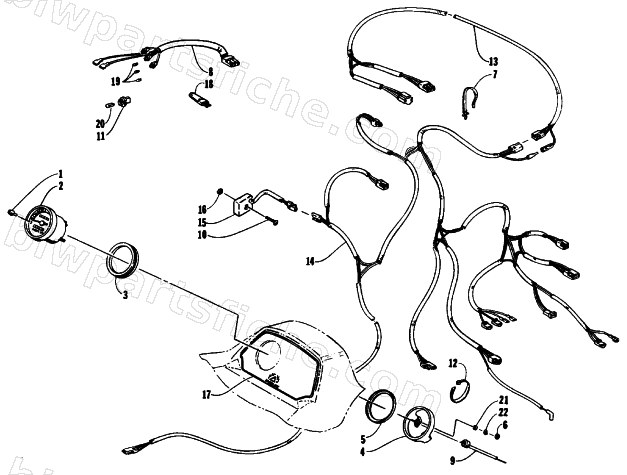

1993 Arctic Cat COUGAR — INSTRUMENTS AND WIRING ASSEMBLIES
1993 COUGAR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-105 | KNOB, TRIPMETER | 1 | $17.95 | |
| 2 | 0620-116 | SPEEDOMETER,US-NEW BEZEL | 1 | $312.95 | |
| 3 | 0620-083 | CUSHION,RUBBER-SPEEDOMETER/TACH | 1 | $13.73 | |
| 4 | 0620-100 | BACKCLAMP,TACH/SPEEDO-3.75 | 1 | $3.95 | |
| 5 | 0120-361 | PLATE,RETAINING | 1 | $5.95 | |
| 6 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 7 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 8 | 0620-091 | HARNESS,SPEEDO-BEAM,TEMP&OIL REF0620-062 | 1 | $90.95 | |
| 9 | 0620-030 | CABLE,SPEEDOMETER | 1 | $60.95 | |
| 10 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 11 | 0620-279 | BULB,TACH SPEEDO ASSY | 1 | $5.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0686-167 | HARNESS,HOOD-HEADLIGHT & INSTR. | 1 | $47.95 | |
| 14 | 0686-139 | HARNESS,MAIN WIRING | 1 | $191.95 | |
| 15 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 17 | 1611-395 | DECAL,CONSOLE-HOOD W/INSTRUMENTS | 1 | $75.95 | |
| 18 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 19 | 0620-104 | BULB,TACH/SPEEDO-1.5WT-1 1/4 | 1 | $4.68 | |
| 21 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 22 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 |
