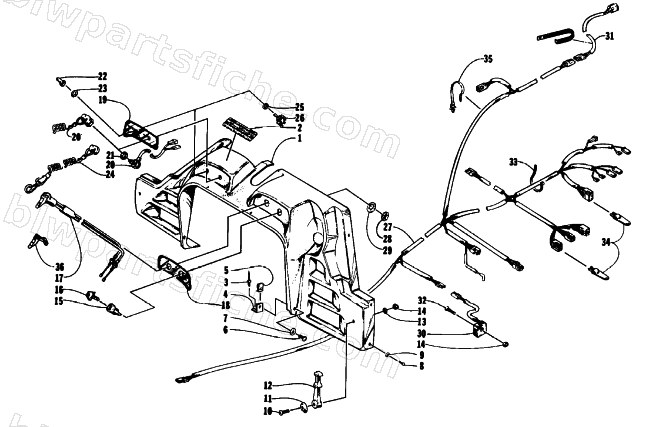

1993 Arctic Cat 580 ZR — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
1993 580 ZR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 1 | 0616-197 | CONSOLE | 1 | $308.95 | |
| 2 | 1611-408 | DECAL,WARNING-SEATING CAP. | 1 | $17.95 | |
| 3 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 8009-614 | SCREW,MACH-CRPH 1/4-20X1.25 G2 Z&BLK | 1 | $0.25 | |
| 11 | 0623-261 | WASHER,CUP-1/4 X 1-BLK | 1 | $22.01 | |
| 12 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 13 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 14 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0609-081 | SWITCH, IGN. (W/0 KEY) | 1 | $54.95 | |
| 16 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 17 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 18 | 1611-710 | PLATE,CONSOLE SWITCH-RH | 1 | $143.95 | |
| 19 | 1611-711 | PLATE,CONSOLE SWITCH-LH | 1 | $25.95 | |
| 20 | 0709-054 | TETHER SWITCH-ASSY (CLOSED) | 1 | $42.95 | |
| 21 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 22 | 0123-983 | NUT,TOGGLE SWITCH | 1 | $5.95 | |
| 23 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 24 | 0709-055 | TETHER CORD W/ SCREW | 1 | $34.95 | |
| 25 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 26 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 27 | 0686-187 | HARNESS,MAIN-WIRING | 1 | $232.95 | |
| 28 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 29 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 30 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 31 | 0686-173 | HARNESS, HOOD-HEADLIGHT & INSTRUMENTS | 1 | $176.95 | |
| 32 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 34 | 0609-069 | POSISTOR,WIRING | 1 | $23.39 | |
| 35 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 36 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 37 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
