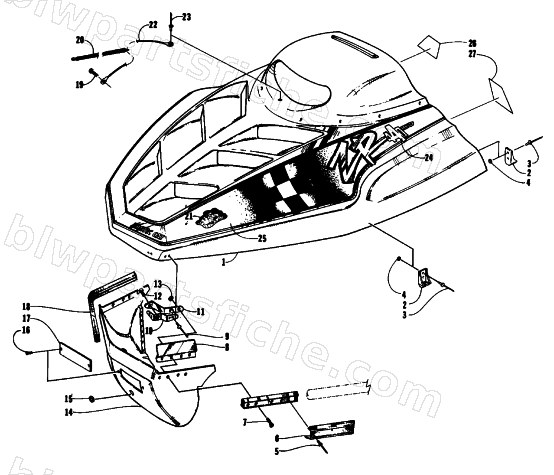

1993 Arctic Cat 440 ZR — HOOD AND NOSEPIECE ASSEMBLY
1993 440 ZR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-270 | HOOD W/O DECAL 440/580ZR(HEAVY)STD. | 1 | $971.95 | |
| 1 | 0718-265 | HOOD W/DECALS-HEAVY | 1 | $1,236.95 | |
| 1 | 0718-271 | HOOD W/DECALS-LIGHT-OPT(RB 0718-265) | 1 | $1,040.95 | |
| 2 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 4 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 5 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 6 | 0616-325 | CAP-BUMPER | 1 | $33.95 | |
| 7 | 0623-205 | SCREW,MACH FH 1/4-20 X 2 | 1 | $1.09 | |
| 8 | 0616-327 | CHANNEL,HOOD | 1 | $12.35 | |
| 9 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 10 | 0706-966 | WELDMENT,HINGE HOOD | 1 | $15.95 | |
| 11 | 0616-328 | BRKT.,HINGE-RH | 1 | $23.39 | |
| 11 | 0616-329 | BRKT.,HINGE-LH | 1 | $14.95 | |
| 12 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0616-292 | NOSECONE | 1 | $290.95 | |
| 15 | 0616-348 | PLUG,BELLYPAN 1.12 | 1 | $1.50 | |
| 16 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 17 | 0706-969 | DOOR, VENT-FABR. | 1 | $14.95 | |
| 19 | 0623-415 | SCREW,CAP-HH M6-1.0X14 G2 Z&Y | 1 | $0.25 | |
| 20 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 21 | 0717-056 | FOAM,HOOD-RH | 1 | $38.95 | |
| 21 | 0717-057 | FOAM,HOOD-LH | 1 | $38.95 | |
| 22 | 0616-326 | CABLE,HOOD - 43" | 1 | $15.11 | |
| 23 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 24 | 1611-684 | DECAL, 440 | 1 | $43.95 | |
| 25 | 1611-680 | DECAL,HOOD SIDE-RH | 1 | $269.95 | |
| 25 | 1611-681 | DECAL,HOOD SIDE-LH | 1 | $267.95 | |
| 26 | 1611-780 | DECAL,WARNING HYD. BRAKE-FRENCH | 1 | $129.95 | |
| 26 | 1611-781 | DECAL,WARNING HYD. BRAKE-ENGLISH | 1 | $68.95 | |
| 27 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 |
