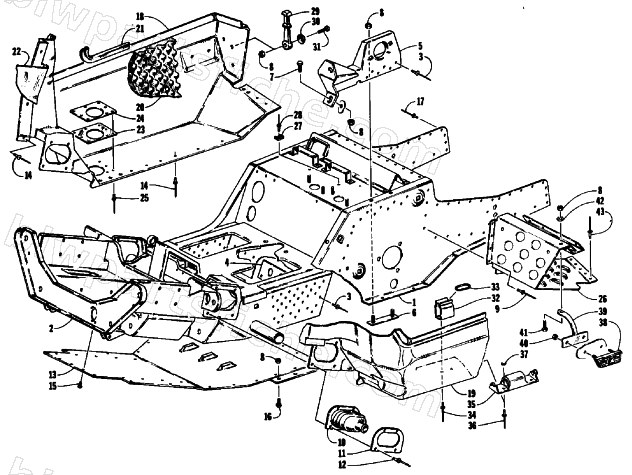

1992 Arctic Cat WILDCAT MOUNTAIN CAT — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1992 WILDCAT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-123 | FRONT END - FAB CHASSIS | 1 | $568.95 | |
| 2 | 0707-101 | FRONT END-WELDMENT | 1 | $648.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 0605-161 | PLATE,BACKING-FRONT COVER | 1 | $6.95 | |
| 5 | 0707-128 | SUPPORT,BEARING-WELDMENT | 1 | $136.95 | |
| 6 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 7 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 8 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 11 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 12 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 13 | 0616-028 | BELLYPAN-PLASTIC | 1 | $172.95 | |
| 14 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 17 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 18 | 0606-930 | BELLYPAN,RH | 1 | $336.95 | |
| 19 | 0606-931 | BELLYPAN,LH | 1 | $374.95 | |
| 21 | 0616-161 | TRIM,BELLYPAN-10' ROLL (RM 0619-134) | 1 | $98.95 | |
| 22 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 23 | 0612-270 | SEAL,EXHAUST OUTLET | 1 | $31.95 | |
| 24 | 0612-271 | RING,EXHAUST OUTLET | 1 | $11.95 | |
| 25 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 | |
| 26 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 26 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 27 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 29 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 30 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 31 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 32 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 33 | 0606-914 | O-RING,DRIVE BELT HOLDER | 1 | $2.47 | |
| 34 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 37 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 38 | 0606-704 | BUMPER,POD | 1 | $14.95 | |
| 39 | 0706-807 | BRACKET,REINFORCEMENT-WELDMENT-LH | 1 | $43.95 | |
| 39 | 0706-806 | BRACKET,REINFORCEMENT-WELDMENT-RH | 1 | $75.95 | |
| 40 | 0123-709 | NUT,HEX 10-32 W/LOCKWASHER | 1 | $0.40 | |
| 41 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 42 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 43 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
