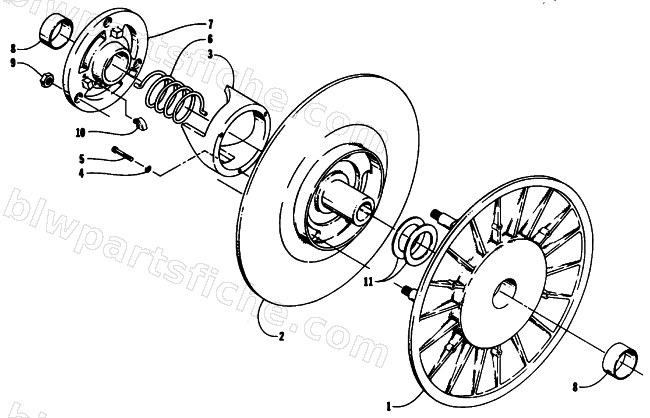

1992 Arctic Cat SUPER JAG — DRIVEN CLUTCH
1992 SUPER JAG
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-015 | CLUTCH,DRIVEN | 1 | $594.95 | |
| 1 | 0748-022 | SHEAVE W/BRG-BUTN DRIVEN(98 PROD) | 1 | $476.95 | |
| 3 | 0648-002 | BRKT, TORQUE - 53 DEG | 1 | $56.95 | |
| 3 | 0148-222 | TORQUE BRACKET-51 | 1 | $58.95 | |
| 4 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 5 | 8005-404 | SCREW, CAP-HSH 10-24X1.25 Z&Y | 1 | $0.95 | |
| 6 | 0648-010 | SPRING,DRIVEN-WHITE | 1 | $82.95 | |
| 6 | 0148-227 | SPRING, DRIVEN-YELLOW | 1 | $39.95 | |
| 7 | 0148-234 | BUTTON RET PLATE MACH | 1 | $56.95 | |
| 8 | 0648-009 | BEARING,DRIVEN CLUTCH 24DU08 | 1 | $19.25 | |
| 9 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 10 | 0148-177 | BUTTON,DRIVEN CLUTCH | 1 | $7.95 | |
| 11 | 0148-198 | WASHER,FLAT-1.51 X 2.10 X .030 | 1 | $1.64 |
