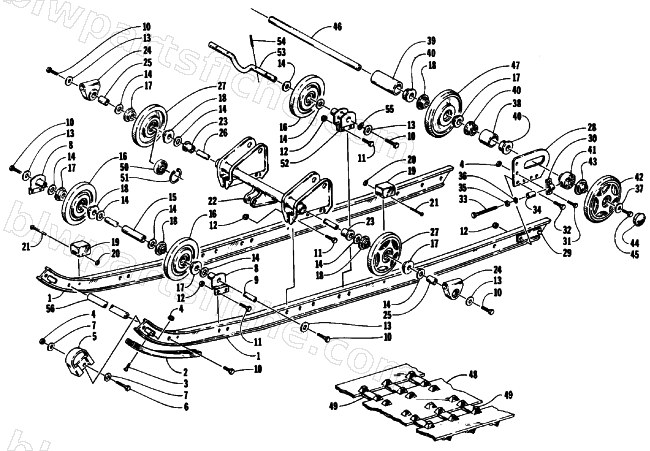

1992 Arctic Cat PROWLER — SLIDE RAIL AND TRACK ASSEMBLY
1992 PROWLER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0604-248 | WEARSTRIP,SLIDE RAIL | 1 | $32.95 | |
| 3 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 8 | 0704-037 | SUPPORT,AUX WHEEL-WELDMENT | 1 | $33.95 | |
| 9 | 0604-142 | AXLE,INNER AUX WHEEL | 1 | $44.95 | |
| 10 | 8012-130 | SCREW, CAP -HHNLP 5/16-18X.75 G5 Z&Y | 1 | $12.35 | |
| 11 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 12 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 13 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 14 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 15 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 16 | 0604-459 | WHEEL,IDLER | 1 | $53.95 | |
| 17 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 18 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 19 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 20 | 0123-766 | NUT,PUSH-.125 STUD | 1 | $1.23 | |
| 21 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 22 | 0704-038 | BRACKET,FRONT ARM-PTD BLK | 1 | $212.95 | |
| 23 | 0114-162 | BUSHING,AXLE | 1 | $5.95 | |
| 24 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 25 | 0114-134 | AXLE,OUTER AUX.WHL | 1 | $29.95 | |
| 26 | 0604-380 | AXLE,CROSS-FRONT SHOCK | 1 | $47.95 | |
| 28 | 0604-131 | HOUSING,REAR AXLE | 1 | $50.95 | |
| 29 | 0604-152 | SPACER,REAR AXLE HOUSING | 1 | $7.95 | |
| 30 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 31 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 32 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 33 | 0623-123 | SCREW,CAP-HEX-3/8-16X5 | 1 | $2.47 | |
| 35 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 36 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 37 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 39 | 1704-466 | SPACER,REAR WHEEL-PTD BLK | 1 | $17.87 | |
| 40 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 41 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 42 | 0604-238 | WHEEL,IDLER-CHROME | 1 | $54.95 | |
| 43 | 1604-774 | INSERT,5/8 BORE X 2" (LONG) | 1 | $6.34 | |
| 44 | 0604-246 | CAP,IDLER WHEEL-BLACK (DP 1500) | 1 | $3.16 | |
| 45 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 46 | 0604-208 | AXLE,REAR WHEEL | 1 | $53.95 | |
| 47 | 0604-210 | WHEEL,IDLER-CENTER | 1 | $53.95 | |
| 48 | 0602-798 | TRACK,121X2.52X.725 -3/5-12 | 1 | $627.95 | |
| 49 | 0102-255 | CLIP,GUIDE-TRACK | 1 | $2.95 | |
| 50 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 51 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 52 | 0704-114 | BRKT,AUX WHEEL-WELDMT | 1 | $65.95 | |
| 53 | 0604-438 | AXLE,AUX WHEEL | 1 | $36.95 | |
| 54 | 8070-284 | PIN,SPRING-5/32 X 1 SLOTTED Z&Y | 1 | $0.40 | |
| 55 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 56 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 |
