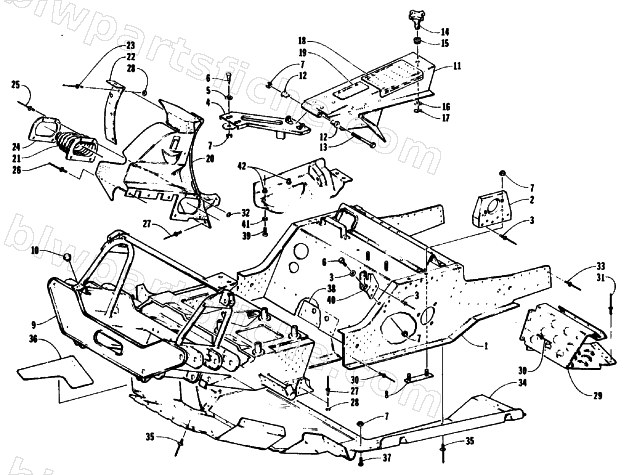

1992 Arctic Cat PROWLER 2-UP — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1992 PROWLER 2-UP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-224 | FRONT END- CHASIS W/RIVETS | 1 | $621.95 | |
| 2 | 0707-065 | SUPPORT,BEARING-WELDT | 1 | $81.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 0707-107 | BRACKET,MTG-CLUTCH SHIELD WELD'T | 1 | $32.95 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 9 | 0707-096 | FRONT END-WELDT | 1 | $784.95 | |
| 10 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 12 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 13 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 14 | 0607-095 | KNOB,THREADED MALE STUD | 1 | $24.77 | |
| 15 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 16 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0607-096 | RETAINER,KNOB-CLUTCH SHLD | 1 | $20.63 | |
| 18 | 1611-155 | DECAL,JET CHART | 1 | $6.95 | |
| 20 | 0606-974 | FENDER,INNER-RH | 1 | $213.95 | |
| 20 | 0606-975 | FENDER,INNER-LH | 1 | $204.95 | |
| 21 | 0605-187 | BOOT,STEERING-DRAG LINK | 1 | $36.95 | |
| 22 | 0616-012 | CHANNEL,POD-RH | 1 | $10.95 | |
| 22 | 0616-013 | CHANNEL,POD-LH | 1 | $10.95 | |
| 23 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 24 | 0605-188 | FLANGE,MOUNTING-STEERING BOOT | 1 | $4.95 | |
| 25 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 26 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 27 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 28 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 29 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 29 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 30 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 31 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 32 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 33 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 34 | 0606-962 | BELLYPAN,PLASTIC | 1 | $255.95 | |
| 36 | 0606-671 | FOIL,BELLYPAN | 1 | $4.95 | |
| 37 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 38 | 0605-161 | PLATE,BACKING-FRONT COVER | 1 | $6.95 | |
| 39 | 0623-226 | SCREW,SELF TAP- #10-32 X 7/8 TYPE F B | 1 | $0.35 | |
| 40 | 0707-105 | BRACKET,TORQUE-WELDMENT | 1 | $14.95 | |
| 42 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 43 | 0612-253 | SEAL,EXHAUST OUTLET | 1 | $23.39 | |
| 44 | 8061-510 | RIVET,BLIND-LF SS58 BLACK | 1 | $0.81 |
