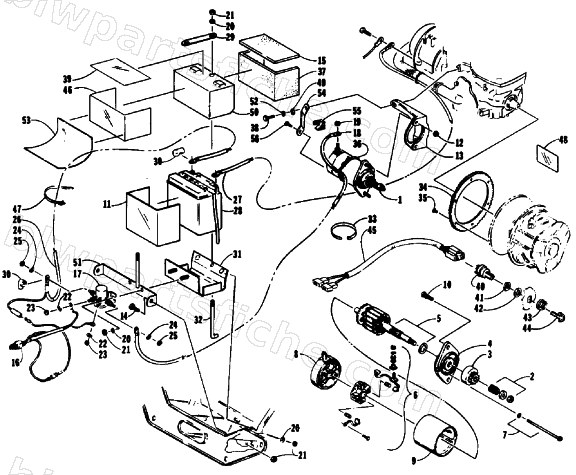

ELECTRIC START ASSEMBLY
1992 PROWLER 2-UP
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-596 | ELECTRIC START KIT | 1 | $717.95 | |
| 1 | 0745-357 | R/B 0745-434 | 1 | $497.95 | |
| 2 | 0745-091 | KIT, PINION STOPPER- ELEC START | 1 | $68.95 | |
| 3 | 0637-265 | UPDATE KIT,STARTER PINION DRIVE(4-1-2) | 1 | $92.95 | |
| 4 | 0639-197 | KIT, ENDCAP REPLACEMENT | 1 | $121.95 | |
| 6 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 7 | 0645-053 | BOLT,STARTER MOTOR | 1 | $4.95 | |
| 8 | 0645-054 | COMMUTATOR CAP | 1 | $225.95 | |
| 10 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 11 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 12 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 14 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 16 | 0686-042 | HARNESS,ELECTRIC START | 1 | $68.95 | |
| 17 | 0645-078 | SOLENOID,ELECTRIC START(COMES W/ KIT 1) | 1 | $106.95 | |
| 18 | 0645-016 | CABLE, SOL-STARTER 21 | 1 | $56.95 | |
| 19 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 20 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 23 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 24 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 25 | 8043-452 | NUT,5/16-24 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.95 | |
| 26 | 0645-024 | CABLE, BATT-SOL 16 | 1 | $56.95 | |
| 27 | 0645-077 | CABLE,BATT-GRD 12 | 1 | $32.95 | |
| 28 | 0745-040 | BATTERY PKG(0645-063) | 1 | $113.95 | |
| 29 | 0645-086 | STRAP,BATTERY-TOP | 1 | $15.95 | |
| 30 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 31 | 0745-021 | TRAY,BATTERY-WELDMT | 1 | $140.95 | |
| 32 | 0645-097 | ROD,HOLDDOWN-BATTERY | 1 | $7.95 | |
| 33 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 34 | 0620-053 | GEAR,RING | 1 | $393.95 | |
| 35 | 0623-212 | SCREW,FLAT SOC/HD-1/4-20X9/16 | 1 | $3.95 | |
| 36 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 38 | 3007-846 | BOLT,M8X1.25X35 | 1 | $4.95 | |
| 39 | 0645-102 | FOIL,4X5.75-HEAT SHIELD-TOP | 1 | $3.95 | |
| 40 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 41 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 42 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 43 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 44 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 46 | 0645-103 | FOIL,HEAT SHIELD-SIDE-4 X 15 | 1 | $9.59 | |
| 47 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 48 | 1611-414 | DECAL,CAUTION-BATTERY & ENGINE | 1 | $23.95 | |
| 49 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 51 | 0745-026 | SUPPORT,BATTERY TRAY-WELDMT | 1 | $30.95 | |
| 52 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 54 | 0645-110 | BRKT,SUPPORT-STARTER | 1 | $19.25 | |
| 55 | 0645-119 | SNUBBER,STARTER | 1 | $6.95 | |
| 56 | 0623-275 | SCREW,SELF TAP-HWH 1/4-20X3/4 | 1 | $0.55 | |
| 57 | 0630-002 | DIODE,CHARGING | 1 | $17.95 | |
| 58 | 0231-021 | FUSE,5 AMP | 1 | $2.29 |
