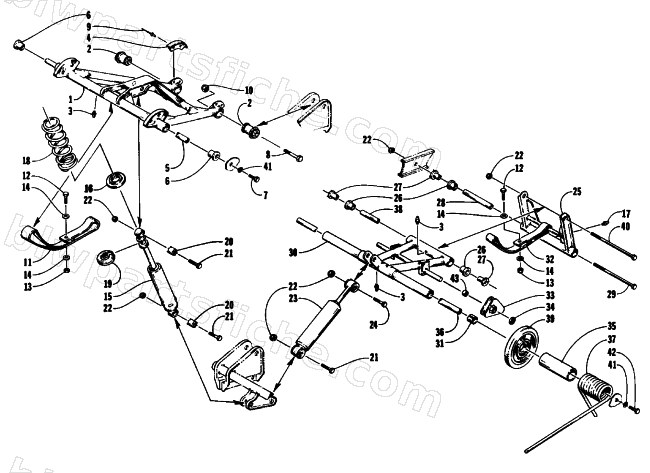

1992 Arctic Cat PANTHER — REAR SUSPENSION ARM ASSEMBLIES
1992 PANTHER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-147 | ARM,FRONT-FABRICATION | 1 | $465.95 | |
| 2 | 0603-087 | BUSHING, SILENTBLOC FLANGED | 1 | $57.95 | |
| 3 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 4 | 0604-183 | BUMPER,TRACK GUIDE | 1 | $32.95 | |
| 5 | 0604-184 | AXLE-SKID FRAME | 1 | $55.95 | |
| 7 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 8 | 8002-410 | SCREW,CAP-HH 1/2-13 X2.75 G5 Z&Y | 1 | $1.64 | |
| 9 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 10 | 8040-606 | NUT,HEX LOCK-NYL 1/2-13 Z&Y | 1 | $0.95 | |
| 11 | 0604-412 | STRAP,LIMITER | 1 | $54.95 | |
| 12 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 15 | 0604-533 | SHOCK ABSORBER-FRONT ARM-REAR SUSP. | 1 | $195.95 | |
| 16 | 0603-399 | RETAINER,SPRING-SHOCK | 1 | $43.95 | |
| 17 | 0623-333 | FITTING,GREASE-65 DEGREE-DRIVE | 1 | $7.95 | |
| 18 | 1704-666 | SPRING,COMP.6.90" X 128LB -PTD BLK | 1 | $91.95 | |
| 19 | 1603-889 | RETAINER, SPRING | 1 | $12.35 | |
| 20 | 0603-030 | AXLE,SERRATED | 1 | $1.37 | |
| 22 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 23 | 0604-591 | SHOCK ABSORBER-RR ARM | 1 | $163.95 | |
| 24 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 25 | 0704-177 | ARM,REAR-FABRICATION | 1 | $129.95 | |
| 26 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 27 | 0603-061 | AXLE,SERRATED | 1 | $1.92 | |
| 29 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 30 | 0704-069 | ARM,IDLER-FABRICATION | 1 | $296.95 | |
| 31 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 32 | 0604-373 | STRAP,LIMITER-REAR | 1 | $37.95 | |
| 33 | 0604-556 | BLOCK,SPRING ADJUSTER RH | 1 | $31.95 | |
| 33 | 0604-557 | BLOCK,SPRING ADJUSTER LH | 1 | $34.95 | |
| 34 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 35 | 0114-160 | SLEEVE,SPRING | 1 | $12.35 | |
| 36 | 0114-163 | AXLE,INNER CARRIAGE | 1 | $56.95 | |
| 37 | 0604-592 | SPRING,SUSPENSION-RH | 1 | $117.95 | |
| 37 | 0604-593 | SPRING,SUSPENSION-LH | 1 | $133.95 | |
| 38 | 0604-204 | AXLE,IDLER-LOWER | 1 | $44.95 | |
| 39 | 0604-205 | WHEEL,IDLER W/HOLE | 1 | $78.95 | |
| 40 | 0623-106 | SCREW,CAP 3/8-16X8 ZN/YLW GR5 | 1 | $2.95 | |
| 41 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 42 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 43 | 0604-604 | SPACER,SPRING ADJUSTER | 1 | $12.35 |
