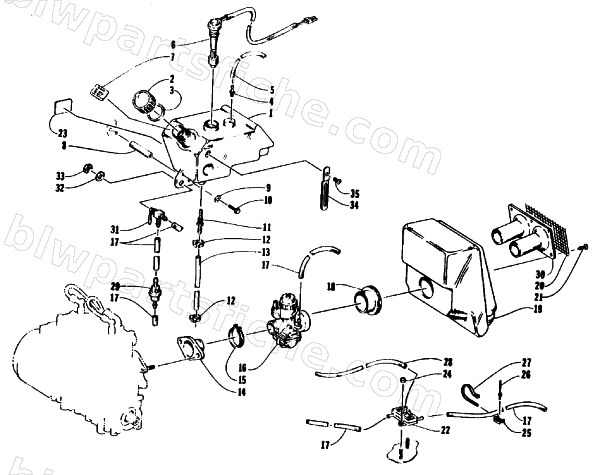

1992 Arctic Cat JAG — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1992 JAG
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-272 | PUMP KIT,FUEL-RECT. | 1 | $42.95 | |
| 1 | 0670-145 | TANK,OIL | 1 | $118.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-103 | TUBE,MTG-OIL TANK | 1 | $19.25 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8012-040 | SCREW,CAP-HHNLP 1/4-20X.75 G5 Z&Y | 1 | $5.65 | |
| 11 | 0115-739 | FITTING,OIL TANK OUTLET | 1 | $5.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 14 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 15 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 16 | 0670-184 | CARBURETOR,VM34-92 PA & JAG | 1 | $389.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 20 | 0670-213 | SCREEN,AIR INTAKE 4.16X6.82 | 1 | $29.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 22 | 0115-481 | FUEL PUMP (DF44-227) | 1 | $78.95 | |
| 23 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 24 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 29 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 30 | 0670-212 | FUNNEL,AIR SILENCER-MOLDED | 1 | $26.95 | |
| 31 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 32 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 33 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 34 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
