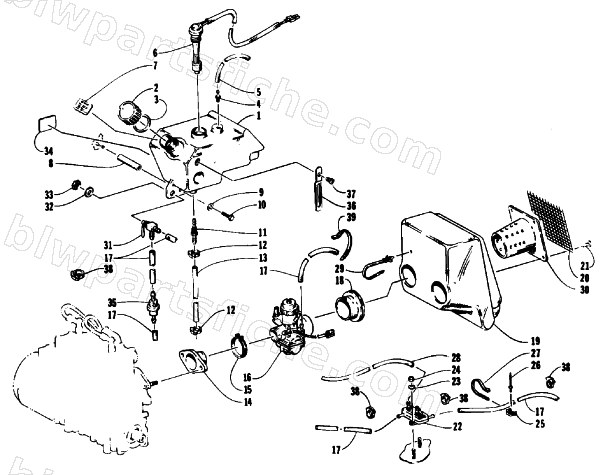

1992 Arctic Cat JAG SPECIAL — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1992 JAG SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-640 | PUMP KIT,FUEL-SQUARE | 1 | $61.95 | |
| 1 | 0670-145 | TANK,OIL | 1 | $118.95 | |
| 2 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 3 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 4 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 5 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 6 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-103 | TUBE,MTG-OIL TANK | 1 | $19.25 | |
| 9 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 10 | 8012-040 | SCREW,CAP-HHNLP 1/4-20X.75 G5 Z&Y | 1 | $5.65 | |
| 11 | 0115-739 | FITTING,OIL TANK OUTLET | 1 | $5.95 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 14 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 15 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 16 | 0770-062 | CARB,VM34-419 W/ CARB SWITCH | 1 | $377.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 17 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 18 | 0670-077 | BOOT,AIR/CARB-VM 34 | 1 | $34.95 | |
| 19 | 0670-141 | SILENCER,AIR | 1 | $95.95 | |
| 20 | 0670-155 | SCREEN,AIR INTAKE | 1 | $44.95 | |
| 21 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 22 | 0636-272 | PUMP KIT,FUEL-RECT. | 1 | $42.95 | |
| 23 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 24 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 28 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 29 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 30 | 0670-151 | FUNNEL,AIR SILENCER | 1 | $29.95 | |
| 31 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 | |
| 32 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 33 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 34 | 0611-978 | DECAL,FUEL SHUT-OFF VALVE | 1 | $10.95 | |
| 35 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 36 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
