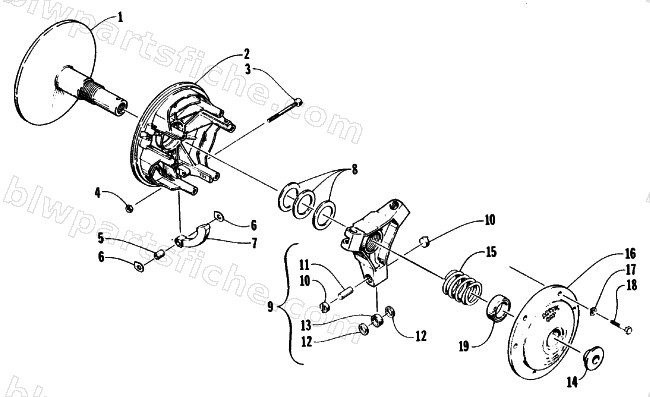

1992 Arctic Cat JAG AFS LT 2 SPEED — DRIVE CLUTCH
1992 JAG AFS LT 2 SPEED
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0136-229 | KIT,ROLLER | 1 | $187.95 | |
| 2 | 0646-122 | SHEAVE, MOVABLE W/BEARING | 1 | $280.95 | |
| 5 | 0646-160 | BEARING,CAM ARM | 1 | $15.11 | |
| 6 | 0646-101 | WASHER,STEEL-CLUTCH | 1 | $0.95 | |
| 7 | 0746-540 | ARM,CAM-W/BRG-46.5 GRAM | 1 | $14.95 | |
| 7 | 0146-530 | CAM ARM | 1 | $69.95 | |
| 8 | 0646-088 | WASHER,SPACER COMET CLUTCH | 1 | $2.47 | |
| 10 | 0146-457 | BUTTON, WEAR | 1 | $14.95 | |
| 11 | 0146-454 | PIN | 1 | $6.95 | |
| 13 | 0146-456 | ROLLER W/BRNG | 1 | $66.95 | |
| 14 | 0646-111 | WASHER,PILOT-COMET CLUTCH | 1 | $31.95 | |
| 16 | 0637-037 | COVER,PLATE W/BRG KIT | 1 | $160.95 | |
| 17 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 18 | 8002-046 | SCREW,CAP-HH 1/4-20 X1.75 G5 Z&Y | 1 | $0.95 | |
| 74626 | 0746-043 | CLUTCH,DRIVE-UNCALIBRATED-ASSY(108 COMET | 1 | $909.95 |
