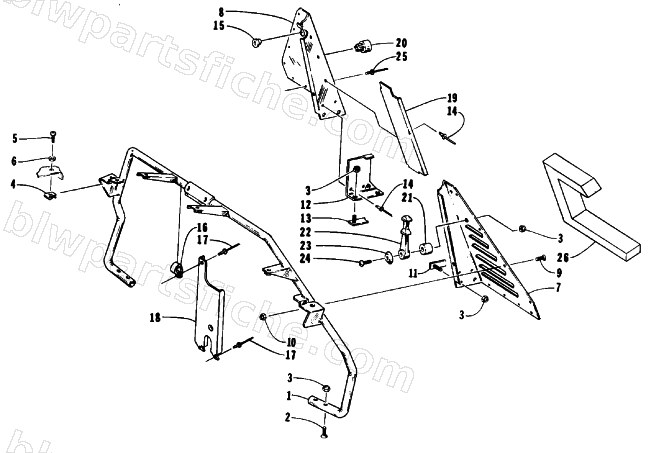

STEERING SUPPORT ASSEMBLY
1992 EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-079 | SUPPORT,STEERING-WELDMT | 1 | $216.95 | |
| 2 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 5 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0616-007 | PLATE,BACKING-VENT LH | 1 | $52.95 | |
| 8 | 0616-006 | PLATE,BACKING-VENT RH | 1 | $52.95 | |
| 9 | 0623-227 | SCREW,MACH FH CR 10-24 X 1.25 | 1 | $0.95 | |
| 10 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 11 | 1705-113 | PLATE, BACKING SIDE-PTD BLK | 1 | $12.35 | |
| 12 | 0605-184 | BRACE,STEERING SUPPORT-RH | 1 | $13.73 | |
| 12 | 0605-185 | BRACE,STEERING SUPPORT-LH | 1 | $13.73 | |
| 13 | 1705-114 | PLATE, BACKING TOP-PTD BLK | 1 | $8.95 | |
| 14 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 15 | 0606-654 | PLUG,HOLE-5/8 | 1 | $0.65 | |
| 16 | 0623-342 | CLAMP,TUBE | 1 | $5.51 | |
| 17 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 19 | 0616-050 | PANEL,FILLER-RIGHT | 1 | $14.95 | |
| 20 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 21 | 0606-481 | SPACER,POD LATCH | 1 | $10.97 | |
| 22 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 23 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 24 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 25 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 |
