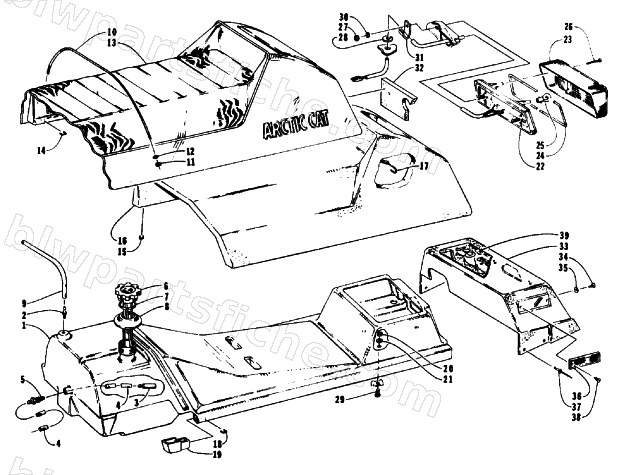

1992 Arctic Cat EXT MOUNTAIN CAT — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLIES
1992 EXT MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-059 | TANK,GAS-ASSY | 1 | $247.95 | |
| 2 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-202 | CAP,GAS-W/GAUGE {10.25"} | 1 | $82.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 0117-054 | SEAL,GAS TANK-SPILL | 1 | $32.95 | |
| 9 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 11 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 12 | 8050-152 | WASHER,FLAT- #10 X .469 X .049 Z&Y | 1 | $3.16 | |
| 13 | 0706-763 | COVER, SEAT W/ARCTIC CAT | 1 | $475.95 | |
| 16 | 0706-673 | FOAM,SEAT CUSHION | 1 | $202.95 | |
| 19 | 0616-062 | PLUG,SEATBASE-RIGHT | 1 | $3.57 | |
| 19 | 0616-063 | PLUG,SEATBASE-LEFT | 1 | $3.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 23 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 24 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 25 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 26 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 27 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 28 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 29 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 30 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 31 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 32 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 33 | 0616-022 | COVER,TUNNEL EXTENSION | 1 | $128.95 | |
| 34 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 36 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 37 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 38 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 39 | 1611-629 | DECAL,MOUNTAIN CAT | 1 | $51.95 |
