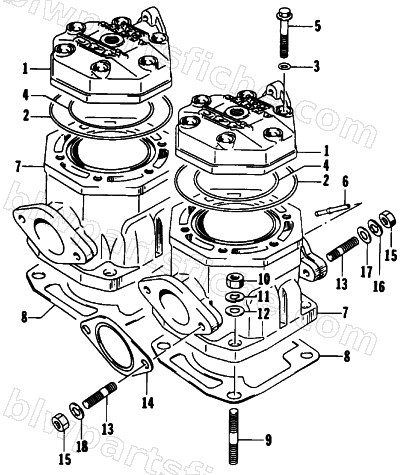

1992 Arctic Cat CHEETAH TOURING — CYLINDER AND HEAD ASSEMBLY
1992 CHEETAH TOURING
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0636-635 | GASKET SET,440L/C LW | 1 | $266.95 | |
| 1 | 3003-640 | HEAD,CYLINDER(440 L/C LW) | 1 | $266.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-634 | O RING,440 L/C INNER | 1 | $30.95 | |
| 5 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 6 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 10 | 3008-209 | NUT,10MM | 1 | $3.16 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3007-410 | WASHER | 1 | $2.75 | |
| 13 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 14 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 15 | 3007-416 | NUT | 1 | $2.75 | |
| 16 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 17 | 3423-204 | WASHER | 1 | $1.95 |
