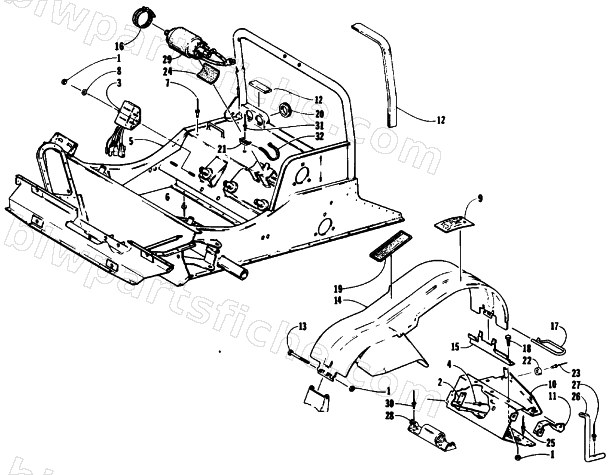

1991 Arctic Cat WILDCAT EFI MOUNTAIN CAT — FRONT FRAME AND FOOTREST ASSEMBLY
1991 WILDCAT EFI MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 3 | 3003-876 | CDI UNIT | 1 | $805.95 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 0707-089 | FRONT END-WELDMENT | 1 | $810.95 | |
| 6 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 7 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 0706-403 | FOOTREST-REINFORCE LH | 1 | $75.95 | |
| 10 | 0706-204 | FOOTREST,REINFORCED-R.H. | 1 | $107.95 | |
| 13 | 8002-052 | SCREW,CAP-HH 1/4-20 X3.25 G5 Z&Y | 1 | $0.95 | |
| 14 | 0707-028 | SHIELD,CLUTCH-WELD | 1 | $219.95 | |
| 16 | 0214-032 | CLAMP,HOSE #44 | 1 | $7.95 | |
| 17 | 0123-670 | PIN,HITCH | 1 | $42.95 | |
| 18 | 8002-037 | SCREW,CAP-HH 1/4-20 X.50 G5 Z&Y | 1 | $0.25 | |
| 19 | 1611-024 | DECAL,CLUTCHING-HIGH ALTITUDE | 1 | $21.95 | |
| 20 | 0606-449 | GROMMET,COOLANT TUBE MTG | 1 | $3.95 | |
| 21 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 22 | 0606-513 | BUMPER,FOOTREST/HOOD | 1 | $3.95 | |
| 23 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 25 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 27 | 8060-424 | RIVET,BLIND-DH AA53 BLK | 1 | $0.95 | |
| 28 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 29 | 3003-862 | PUMP ASSY,FUEL | 1 | $976.95 | |
| 30 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 31 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 32 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
