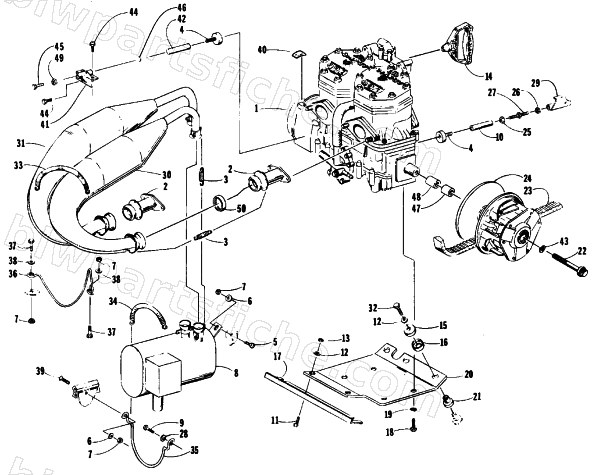

1991 Arctic Cat WILDCAT 700 — ENGINE AND RELATED PARTS
1991 WILDCAT 700
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-093 | ENGINE,700 L/C 1993 | 1 | $3,949.95 | |
| 2 | 0712-025 | HEAD PIPE,EXHAUST-WELDT | 1 | $98.95 | |
| 3 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 4 | 0608-034 | BUMPER,TORQUE {.400/.500} ENGINE | 1 | $16.49 | |
| 5 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0612-047 | RESONATOR,650 | 1 | $626.95 | |
| 9 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 10 | 0608-011 | TUBE,TORQUE ADJUST {2.48"} | 1 | $47.95 | |
| 11 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 12 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 13 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 14 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 15 | 0108-199 | MOUNT,ENGINE-FEMALE | 1 | $12.35 | |
| 16 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 17 | 0608-018 | SUPPORT ANGLE,ENGINE | 1 | $145.95 | |
| 18 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 19 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 20 | 0608-030 | PLATE,MTG-ENGINE | 1 | $249.95 | |
| 21 | 0108-198 | MOUNT,ENGINE-MALE | 1 | $5.95 | |
| 22 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 23 | 0627-006 | DRIVE BELT, CVT | 1 | $77.95 | |
| 24 | 0746-194 | CLUTCH,DRIVE-UNCAL-8.0" 30MM/S/NFP | 1 | $971.95 | |
| 25 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 26 | 0123-379 | NUT,JAM3/8-24LH THD | 1 | $1.95 | |
| 27 | 0105-305 | STUD BOLT,TIE ROD ADJ | 1 | $23.39 | |
| 28 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 29 | 0708-001 | BRKT,TORQUE-WELD'T | 1 | $20.95 | |
| 30 | 0612-145 | CHAMBER,EXPANSION-PTO SIDE | 1 | $568.95 | |
| 31 | 0612-144 | CHAMBER,EXPANSION-MAG SIDE | 1 | $568.95 | |
| 32 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 33 | 0612-013 | SPRING,EXTENSION | 1 | $20.63 | |
| 34 | 0112-232 | SPRING,EXTENSION | 1 | $25.95 | |
| 35 | 0612-087 | BRACKET,MTG-RESONATOR | 1 | $46.95 | |
| 36 | 0612-057 | BRACKET,MOUNTING-EXPANSION CHAMBER | 1 | $30.95 | |
| 37 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 38 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 39 | 0123-982 | SCREW,MACH FH 1/4-20X1-3/4 | 1 | $0.25 | |
| 40 | 1611-014 | DECAL,ENGINE P/N 700 L/C | 1 | $3.95 | |
| 41 | 0708-004 | BRKT,TORQUE-WELD'T | 1 | $21.95 | |
| 42 | 0608-042 | TUBE,TORQUE BRKT | 1 | $15.95 | |
| 43 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 44 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 46 | 0608-041 | DISC,WEAR-TORQUE BRKT | 1 | $2.19 | |
| 47 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 48 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 49 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 50 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 |
