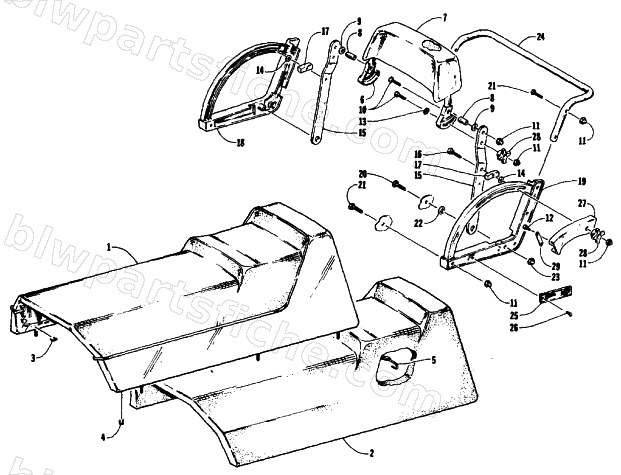

1991 Arctic Cat PROWLER TWO-UP — SEAT AND BACKREST ASSEMBLIES
1991 PROWLER TWO-UP
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0706-553 | FOAM,SEAT CUSHION | 1 | $226.95 | |
| 7 | 0706-298 | COVER,BACKREST | 1 | $106.95 | |
| 8 | 0606-732 | TUBE,BACKREST PIVOT | 1 | $24.77 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8007-615 | SCREW,MACH-CRTH 1/4-20X1.50 G2 BE | 1 | $1.95 | |
| 12 | 0623-012 | SCREW, #8X1/2 TR HD CR | 1 | $0.15 | |
| 13 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 14 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 15 | 0606-716 | SUPPORT,BACKREST | 1 | $34.95 | |
| 16 | 8011-048 | BOLT,CRG 1/4-20 X2.25 GR1 Z&Y | 1 | $0.95 | |
| 17 | 0606-733 | STOP,BACKREST | 1 | $3.95 | |
| 18 | 0706-596 | BRKT,MTG-BACKREST-RH | 1 | $296.95 | |
| 19 | 0706-597 | BRKT,MTG-BACKREST-LH | 1 | $296.95 | |
| 20 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 21 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 22 | 0606-719 | SPACER,BACKREST SUPPORT | 1 | $6.89 | |
| 23 | 0123-107 | NUT,5/16-18 UNC NYLON | 1 | $1.69 | |
| 24 | 0606-791 | TUBE,REAR LIFT | 1 | $100.95 | |
| 25 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 26 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 27 | 0606-949 | HANDLE,BACKREST-LH | 1 | $10.95 | |
| 27 | 0606-948 | HANDLE, BACKREST-RH | 1 | $12.35 | |
| 28 | 0623-267 | KNOB,FEMALE-1/4-20 | 1 | $5.95 | |
| 29 | 0606-718 | BRKT,MTG-BACKREST HANDLE | 1 | $1.95 |
