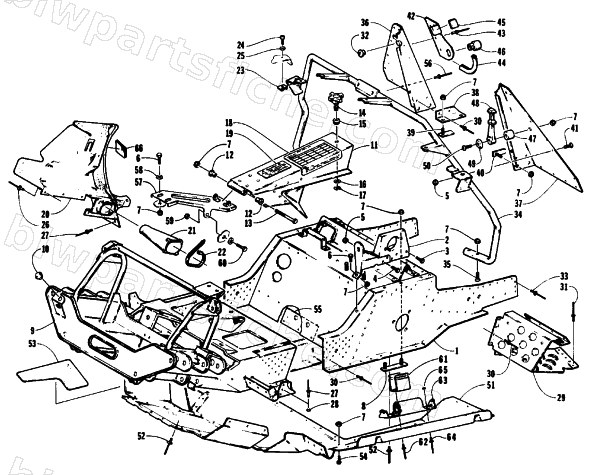

1991 Arctic Cat PROWLER SPECIAL — FRONT FRAME, BELLY PAN AND FOOTREST ASSEMBLY
1991 PROWLER SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-223 | FRONT END- CHASIS W/RIVETS | 1 | $679.95 | |
| 2 | 0707-088 | SUPPORT,BEARING-WELDMT | 1 | $113.95 | |
| 5 | 8040-246 | NUT,HEX LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 6 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 9 | 0707-094 | FRONT END-WELDMT | 1 | $938.95 | |
| 10 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 12 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 14 | 0607-095 | KNOB,THREADED MALE STUD | 1 | $24.77 | |
| 15 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 16 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 17 | 0607-096 | RETAINER,KNOB-CLUTCH SHLD | 1 | $20.63 | |
| 18 | 1611-019 | DECAL,JET CHART | 1 | $16.95 | |
| 20 | 0606-975 | FENDER,INNER-LH | 1 | $204.95 | |
| 20 | 0606-974 | FENDER,INNER-RH | 1 | $213.95 | |
| 21 | 0605-177 | BOOT,STEERING-DRAG LINK | 1 | $33.95 | |
| 22 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 | |
| 23 | 0123-539 | NUT,SPEED 1/4-20 U-TYPE | 1 | $0.65 | |
| 24 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 27 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 28 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 29 | 0606-197 | FOOTREST-LH,PAINTED | 1 | $152.95 | |
| 29 | 0606-198 | FOOTREST-RH,PAINTED | 1 | $157.95 | |
| 30 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 31 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 32 | 0606-654 | PLUG,HOLE-5/8 | 1 | $0.65 | |
| 33 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 35 | 0623-060 | SCREW,OVAL HEAD-1/4-20X1-1/2 | 1 | $1.64 | |
| 38 | 0605-120 | BRACE,STEERING SUPPORT-RH | 1 | $16.49 | |
| 38 | 0605-121 | BRACE,STEERING SUPPORT-LH | 1 | $16.95 | |
| 39 | 1705-114 | PLATE, BACKING TOP-PTD BLK | 1 | $8.95 | |
| 40 | 1705-113 | PLATE, BACKING SIDE-PTD BLK | 1 | $12.35 | |
| 41 | 0623-227 | SCREW,MACH FH CR 10-24 X 1.25 | 1 | $0.95 | |
| 42 | 0606-555 | BRKT,RECOIL BUSHING | 1 | $33.95 | |
| 43 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 44 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 46 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 47 | 0606-481 | SPACER,POD LATCH | 1 | $10.97 | |
| 48 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 49 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 50 | 8002-047 | SCREW,CAP-HH 1/4-20 X2.00 G5 Z&Y | 1 | $0.95 | |
| 51 | 0706-838 | BELLY PAN | 1 | $404.95 | |
| 52 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 53 | 0606-671 | FOIL,BELLYPAN | 1 | $4.95 | |
| 55 | 0605-161 | PLATE,BACKING-FRONT COVER | 1 | $6.95 | |
| 57 | 0707-107 | BRACKET,MTG-CLUTCH SHIELD WELD'T | 1 | $32.95 | |
| 58 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 59 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 60 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 61 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 63 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 64 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 65 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 |
