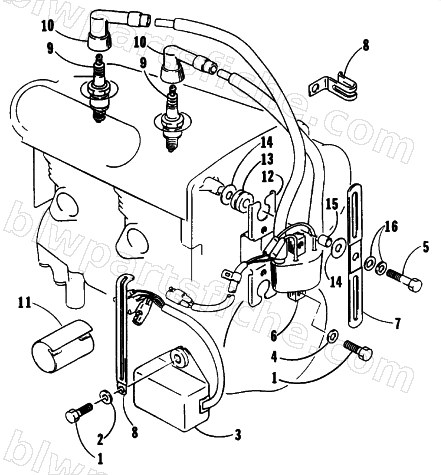

ELECTRICAL
1991 PANTHER MOUNTAIN CAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-029 | BOLT, HEX,M6X20 | 1 | $4.54 | |
| 2 | 3003-030 | WASHER, FLAT | 1 | $2.75 | |
| 4 | 3004-447 | WASHER, LOCK 6MM | 1 | $3.16 | |
| 5 | 3003-050 | BOLT, HEX M6-1X30 | 1 | $3.44 | |
| 6 | 3005-185 | COIL SET, IGNITION | 1 | $305.95 | |
| 7 | 3003-539 | CLAMP,M6 | 1 | $6.95 | |
| 8 | 3003-557 | CLAMP,CORD,M11 | 1 | $10.97 | |
| 9 | 0217-700 | SPARK PLUG BR9ES {SOLID} | 1 | $4.54 | |
| 10 | 3003-175 | CAP,SPARK PLUG LB05EZ | 1 | $12.35 | |
| 11 | 3003-474 | COVER, CONNECTOR 88 650 WILDCAT | 1 | $20.95 | |
| 12 | 3003-385 | BRACKET, IGNITION (ELEC) | 1 | $28.95 | |
| 13 | 3003-534 | CUSHION,IGN COIL BKT | 1 | $13.95 | |
| 14 | 3005-571 | WASHER(6.5X24X1.6) | 1 | $2.95 | |
| 15 | 3003-666 | SPACER,6MM | 1 | $4.95 | |
| 16 | 3002-718 | CLAMP,WIRE | 1 | $21.95 |
