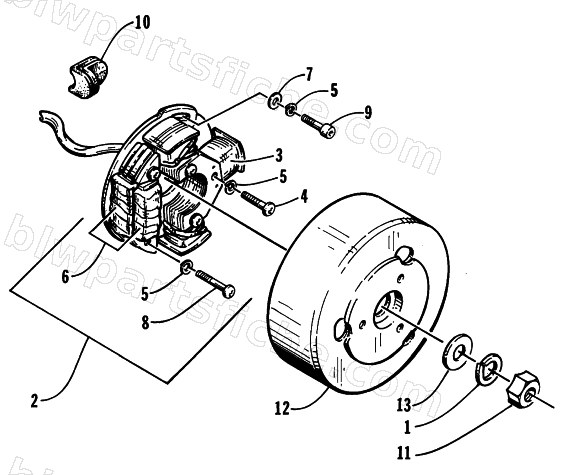

1991 Arctic Cat JAG MOUNTAIN CAT — MAGNETO
1991 JAG MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 2 | 3005-375 | STATOR ASSY | 1 | $857.95 | |
| 3 | 3003-013 | COIL ASSEMBLY, LIGHTING | 1 | $148.95 | |
| 4 | 3007-848 | SCREW,5X30 | 1 | $2.75 | |
| 5 | 3007-628 | WASHER, LOCK-5MM | 1 | $3.30 | |
| 6 | 3004-834 | COIL, PRIMARY FROM(3003-681 ) | 1 | $266.95 | |
| 7 | 3002-282 | WASHER,FLAT 5M.2X12X1.6 | 1 | $1.95 | |
| 8 | 3007-843 | SCREW,M5X35 | 1 | $2.75 | |
| 9 | 3002-281 | BOLT,HEX SOC M5-.8X22 | 1 | $2.39 | |
| 10 | 3005-918 | GROMMET, MAGNETO LEAD WIRE | 1 | $5.92 | |
| 11 | 3007-556 | NUT | 1 | $3.95 | |
| 12 | 3003-012 | FLYWHEEL MAGNETO | 1 | $1,001.95 | |
| 13 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 |
