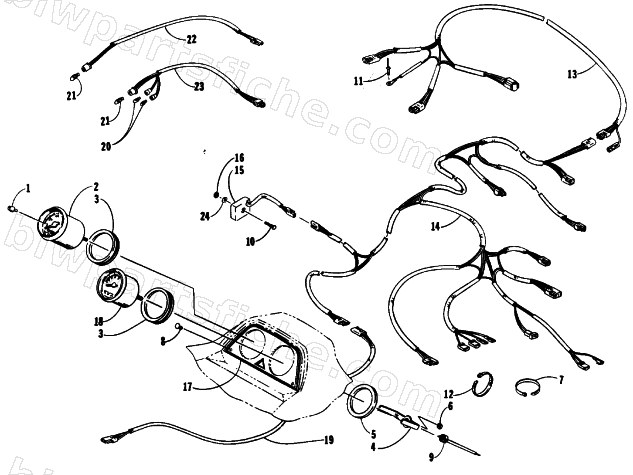

1991 Arctic Cat JAG AFS SPECIAL — INSTRUMENTS AND WIRING ASSEMBLIES
1991 JAG AFS SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0620-073 | KNOB,TRIPMETER | 1 | $15.11 | |
| 2 | 0620-065 | SPEEDOMETER | 1 | $291.95 | |
| 3 | 0120-362 | CUSHION RUBBER | 1 | $11.95 | |
| 4 | 0120-457 | BRACKET,SPEEDOMETER-MTG | 1 | $17.87 | |
| 4 | 0120-281 | BRACKET,MTG-TACHOMETER | 1 | $13.73 | |
| 5 | 0120-361 | PLATE,RETAINING | 1 | $5.95 | |
| 6 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 7 | 0623-164 | TIE,CABLE-PUSH MOUNT | 1 | $1.95 | |
| 8 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 9 | 0620-030 | CABLE,SPEEDOMETER | 1 | $60.95 | |
| 10 | 0623-096 | BOLT,RIB NECK-RDH 1/4-20X1.50 Z&Y | 1 | $0.55 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0686-081 | HARNESS,HOOD | 1 | $154.95 | |
| 14 | 0686-113 | HARNESS,MAIN WIRING | 1 | $212.95 | |
| 15 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 16 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0620-067 | TACHOMETER W/SLR TRIM & TEMP/WARMER LTS | 1 | $311.95 | |
| 20 | 0609-078 | BULB,T 6.5 WEDGE BASE-1 | 1 | $4.95 | |
| 21 | 0230-020 | BULB, T-10 WEDGE BASE-12 V 3.4W | 1 | $3.16 | |
| 22 | 0620-062 | HARNESS,SPEEDOMETER-1 BULB | 1 | $33.95 | |
| 23 | 0620-063 | HARNESS,TACH-TEMP&WARMER | 1 | $56.95 | |
| 24 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 |
