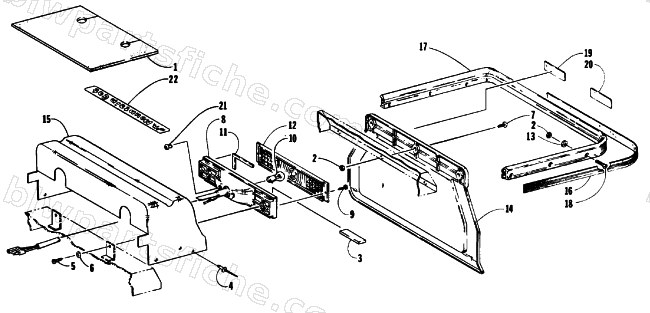

1991 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — TAILLIGHT AND REAR BUMPER
1991 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 5 | 0123-661 | SCREW,MTL HEX HD 8X5/8 AB-SLOT | 1 | $0.15 | |
| 6 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 7 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 8 | 0709-033 | TAILLIGHT ASSY,HSG & SKT | 1 | $150.95 | |
| 9 | 0124-080 | SCREW,PAN HD-7X5/8 CR | 1 | $0.95 | |
| 10 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 11 | 0117-042 | GASKET,TAILLIGHT | 1 | $17.95 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0606-505 | SNOWFLAP-30 DG CHROME-PLASTIC | 1 | $91.95 | |
| 15 | 0606-615 | COVER,REAR-PLASTIC | 1 | $210.95 | |
| 17 | 0706-458 | BUMPER,REAR | 1 | $102.95 | |
| 18 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 19 | 0212-133 | DECAL,TOWING CAUTION FRENCH | 1 | $8.95 | |
| 20 | 0212-271 | DECAL,CAUTION TOWING | 1 | $8.95 | |
| 21 | 0117-056 | LENS,TOOLBOX | 1 | $10.97 |
