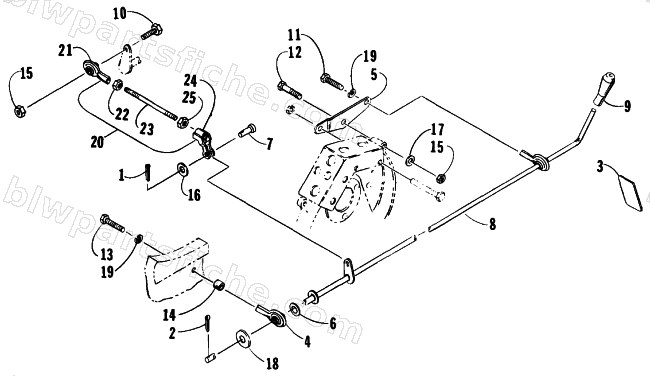

1991 Arctic Cat EL TIGRE EXT MOUNTAIN CAT — REVERSE SHIFT LEVER ASSEMBLY
1991 EL TIGRE EXT MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 3 | 1611-444 | DECAL,CAUTION-REVERSE | 1 | $21.95 | |
| 4 | 0602-163 | ROD END,FEMALE-.375 | 1 | $24.77 | |
| 5 | 0602-407 | BRACKET,ROD END MTG.-SHIFT LEVER | 1 | $19.25 | |
| 6 | 0623-130 | WASHER,SPRING-3/8 | 1 | $1.50 | |
| 7 | 0623-132 | PIN,CLEVIS-.25X.75 LG | 1 | $2.47 | |
| 8 | 0702-137 | LEVER,SHIFT-WELDT | 1 | $47.95 | |
| 9 | 0602-152 | KNOB,SHIFT LEVER | 1 | $15.11 | |
| 10 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 11 | 8004-222 | SCREW,CAP-HH 3/8-24X1.0 G5 Z&Y | 1 | $0.55 | |
| 12 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 13 | 8004-224 | SCREW,CAP-HH 3/8-24X1.25 G5 Z&Y | 1 | $0.55 | |
| 14 | 0114-312 | SPACER,FRONT-SHOCK MTG | 1 | $16.49 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 18 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 19 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 20 | 0702-122 | SHIFTING LINK W/YOKE-5/16 | 1 | $105.95 | |
| 21 | 0602-305 | ROD END L.H. 5/16-24 UNF | 1 | $22.95 | |
| 22 | 0623-260 | NUT,HEX JAM 5/16-24 NF L H | 1 | $1.09 | |
| 23 | 0602-320 | ROD,LINKAGE | 1 | $4.95 | |
| 24 | 0702-105 | YOKE,LINKAGE-WELDT | 1 | $74.95 | |
| 25 | 0123-144 | NUT,HEX-JAM 5/16-24 NF ZN | 1 | $0.26 |
