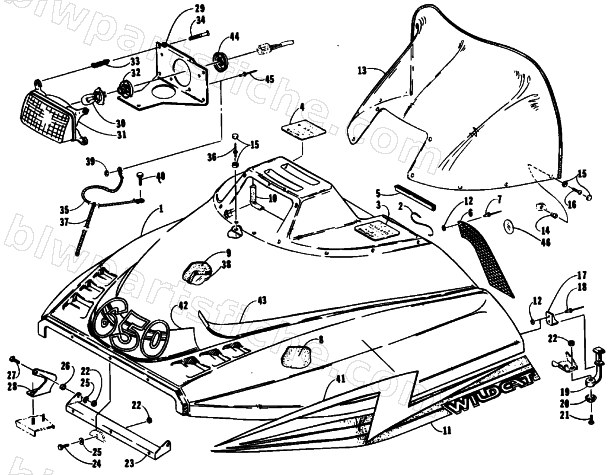

HOOD ASSEMBLY
1990 WILDCAT 650
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-085 | HOOD-90 WILDCAT | 1 | $1,045.95 | |
| 1 | 0718-094 | HOOD W/DECALS-90 WC | 1 | $1,236.95 | |
| 2 | 0611-348 | DECAL,PINSTRIPE 25' ROLL | 1 | $81.95 | |
| 3 | 0611-294 | DECAL,ENGINE CAUT | 1 | $20.95 | |
| 4 | 0611-346 | DECAL,WARNING-HIGH PERFORMANCE | 1 | $17.95 | |
| 6 | 0606-296 | SCREEN,HOOD VENT-RH | 1 | $34.95 | |
| 6 | 0606-297 | SCREEN,HOOD VENT-LH | 1 | $49.95 | |
| 7 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 8 | 0617-088 | FOAM,HOOD-RH SIDE | 1 | $11.95 | |
| 8 | 0617-089 | FOAM,HOOD-LH SIDE | 1 | $11.95 | |
| 9 | 0617-090 | FOAM,HOOD-UPPER CENTER | 1 | $18.95 | |
| 9 | 0617-091 | FOAM,HOOD-LOWER CENTER | 1 | $15.95 | |
| 10 | 0617-073 | SEAL,HEADLIGHT | 1 | $29.95 | |
| 11 | 0611-639 | DECAL,HOOD SIDE-LH | 1 | $59.95 | |
| 12 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 14 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 15 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 16 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 17 | 0115-307 | LATCH CUP,HOOD | 1 | $1.23 | |
| 19 | 0115-306 | CORD,LATCH | 1 | $5.51 | |
| 20 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 21 | 8007-585 | SCREW,MACH-CRTH 1/4-20X1.50 G2 Z&Y | 1 | $0.40 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0706-055 | SUPPORT,HOOD HINGE | 1 | $64.95 | |
| 24 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 0107-234 | BUSHING,TIGHTENER ARM | 1 | $16.95 | |
| 28 | 0606-042 | HINGE,PAN-RH | 1 | $12.95 | |
| 28 | 0606-043 | HINGE,PAN-LH | 1 | $7.95 | |
| 29 | 0606-479 | BRACKET,HEADLIGHT | 1 | $33.95 | |
| 30 | 0109-735 | BULB,HEADLIGHT 12V60/6 | 1 | $24.95 | |
| 31 | 0609-104 | HEADLAMP-SLOPED | 1 | $223.95 | |
| 32 | 0115-285 | HOLDER,CAP-HEADLAMP-STEEL | 1 | $18.95 | |
| 33 | 0123-614 | SPRING,ADJUSTMENT | 1 | $1.92 | |
| 34 | 0623-051 | SCREW,ADJUSTMENT 1.96 BLK ZINC | 1 | $0.95 | |
| 35 | 1606-637 | CABLE, HOOD-38.0" | 1 | $16.49 | |
| 36 | 8060-628 | RIVET,BLIND-DH AA66 BLK | 1 | $1.23 | |
| 37 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 39 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 40 | 0623-074 | BOLT,FILLER NECK | 1 | $1.95 | |
| 41 | 0611-640 | DECAL,HOOD Z-RH | 1 | $52.95 | |
| 41 | 0611-641 | DECAL,HOOD Z-LH | 1 | $77.95 | |
| 42 | 0611-583 | DECAL,HOOD TOP-CENTER | 1 | $102.95 | |
| 43 | 0611-582 | DECAL,HOOD TOP-RH | 1 | $43.95 | |
| 43 | 0611-581 | DECAL,HOOD TOP-LH | 1 | $43.95 | |
| 44 | 0609-114 | CAP,BULB | 1 | $4.95 | |
| 45 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 47 | 0123-615 | NUT,ADJUSTMENT | 1 | $4.54 |
