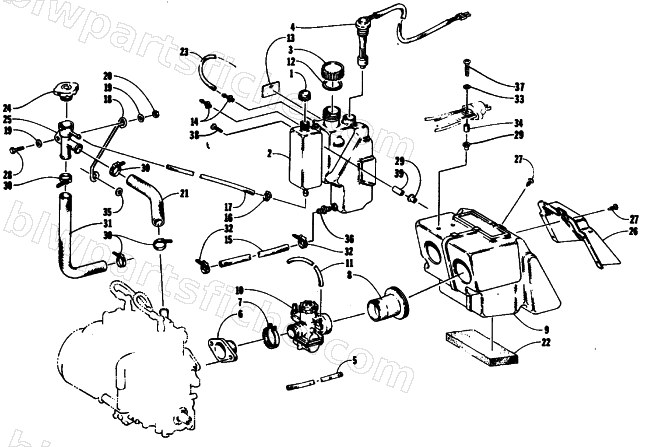

1990 Arctic Cat WILDCAT 650 MOUNTAIN CAT — OIL/WATER TANK, CARBURETOR, AND SILENCER ASSEMBLIES
1990 WILDCAT 650 MOUNTAIN CAT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-035 | CAP,TANK-WATER | 1 | $16.49 | |
| 2 | 0670-152 | TANK,OIL/WATER | 1 | $113.95 | |
| 3 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 4 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 5 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 6 | 0670-198 | FLANGE,CARB-40MM W/CLAMP | 1 | $84.95 | |
| 7 | 0670-108 | CLAMP,CARB FLANGE (40/44 MM) | 1 | $24.77 | |
| 8 | 0670-082 | BOOT,AIR/CARB-VM40 | 1 | $49.95 | |
| 10 | 0670-126 | CARBURETOR,VM 40-47 | 1 | $463.95 | |
| 11 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 11 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 12 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 13 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 14 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 15 | 0610-018 | HOSE 1/2 X15' | 1 | $257.95 | |
| 16 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 17 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 18 | 0606-218 | BRKT,MTG-FILLER | 1 | $22.01 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0610-023 | HOSE,FILLER-ENGINE | 1 | $32.95 | |
| 22 | 0617-050 | FOAM,AIRBOX BOTTOM 1.0X4.0X7.0 | 1 | $8.95 | |
| 23 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 24 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 25 | 2606-859 | FILLER NECK | 1 | $38.95 | |
| 27 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 28 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 29 | 0623-084 | RIVET NUT,FLAT HEAD 10-32UNF X .130-.180 | 1 | $0.95 | |
| 30 | 0214-015 | CLAMP,HOSE-#16/#17 | 1 | $2.19 | |
| 31 | 0610-031 | HOSE,LH TUBE TO FILLER NECK | 1 | $54.95 | |
| 32 | 0623-028 | CLAMP,5/16-3/4DIA | 1 | $3.57 | |
| 33 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 34 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 35 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 36 | 0670-118 | OUTLET,OILTANK-1/2 TUBE | 1 | $4.95 | |
| 38 | 0623-204 | SCREW, MACH - PHPNH, #10-32X2.5 BLK | 1 | $0.95 | |
| 39 | 0670-124 | SPACER,SILENCER/OIL TANK | 1 | $3.30 |
