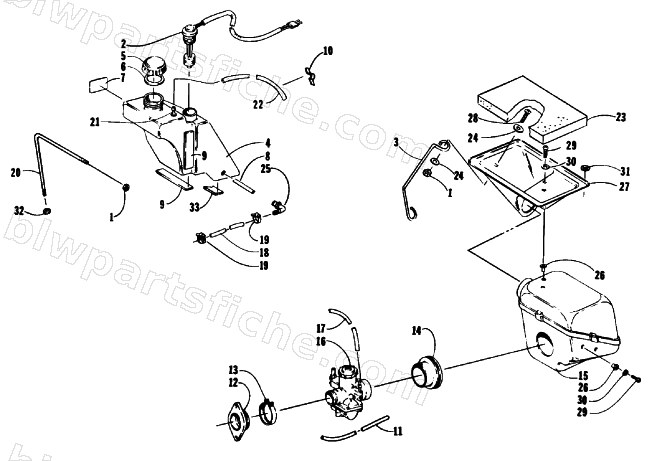

1990 Arctic Cat SUPER JAG — OIL TANK, CARBURETOR, FUEL PUMP, AND SILENCER
1990 SUPER JAG
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 2 | 0609-031 | SENSOR,LOW OIL | 1 | $144.95 | |
| 3 | 0606-126 | SUPPORT,PLENUM | 1 | $10.95 | |
| 5 | 0670-341 | CAP,OIL TANK-W/SEAL | 1 | $16.49 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 0611-384 | DECAL,OIL TANK | 1 | $6.95 | |
| 8 | 0670-079 | EXTENSION,OIL TANK FITTING | 1 | $14.95 | |
| 10 | 0623-014 | CLIP,OIL TANK BRKT | 1 | $3.95 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 13 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 16 | 0670-062 | CARBURETOR,VM34-383 | 1 | $347.95 | |
| 17 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 18 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 19 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 20 | 0606-626 | WIREFORM,OILTANK | 1 | $3.95 | |
| 21 | 0115-135 | VENT,GAS TANK | 1 | $1.95 | |
| 22 | 0610-010 | HOSE, VENT-25 FT | 1 | $69.95 | |
| 23 | 0617-025 | FOAM,AIR INTAKE-PA | 1 | $19.25 | |
| 24 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 25 | 0670-075 | FITTING,ELBOW | 1 | $4.54 | |
| 26 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 28 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 29 | 0123-549 | SCREW,MACH-PHTRH 10-32 X 1.00 Z&Y | 1 | $0.29 | |
| 30 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 31 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 33 | 0115-408 | FOAM PAD 2.75 X 1.0 X .50 | 1 | $1.95 |
