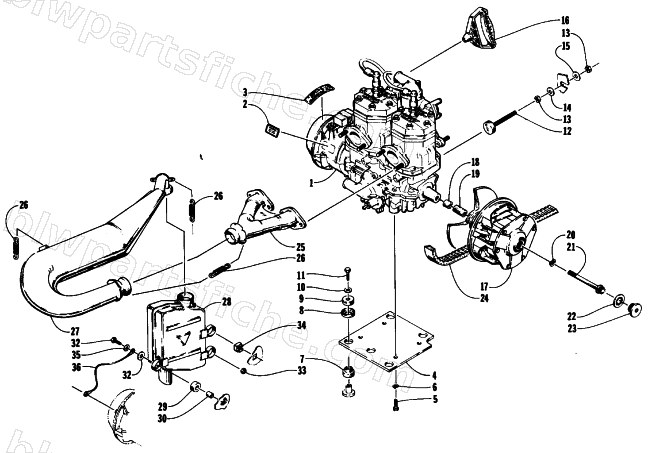

1990 Arctic Cat PROWLER — ENGINE AND RELATED PARTS
1990 PROWLER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-080 | ENGINE,440 L/C- (440L/C-AJ44L5) | 1 | $4,525.95 | |
| 2 | 1611-716 | DECAL,HOOD-RH | 1 | $143.95 | |
| 4 | 0608-019 | PLATE,MTG ENGINE | 1 | $363.95 | |
| 5 | 8002-404 | SCREW,CAP-HH 1/2-13 X1.25 G5 Z&Y | 1 | $1.95 | |
| 6 | 8051-332 | WASHER,SPR LOCK-1/2 .502X.869X.125 Z&Y | 1 | $0.40 | |
| 8 | 0123-745 | WASHER,CUP | 1 | $22.01 | |
| 9 | 0108-287 | MOUNT,ENGINE-FEMALE | 1 | $14.95 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 11 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 12 | 0608-044 | BUMPER,TORQ.{2.600/2.700}-ENGINE-60 DU | 1 | $18.95 | |
| 13 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 14 | 0114-197 | WASHER,FLAT .390 X 1.06 X.125 | 1 | $1.23 | |
| 15 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 16 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 17 | 0725-202 | CLUTCH, DRIVE-ASSY (COMET) (0725-088) | 1 | $958.95 | |
| 18 | 0646-107 | SPACER,ALUMINUM-CLUTCH | 1 | $29.95 | |
| 19 | 0646-106 | SPACER,URETHANE-CLUTCH | 1 | $5.09 | |
| 20 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 21 | 0623-206 | BOLT,COUNTERBORE-1/2-20X5.5 | 1 | $20.63 | |
| 22 | 0646-114 | WASHER,INTERNAL LOCK-HD-7/8 | 1 | $1.64 | |
| 23 | 0646-113 | CAP,RETAINER-COMET CLUTCH | 1 | $27.95 | |
| 24 | 0227-103 | BELT,DRIVE | 1 | $71.95 | |
| 25 | 0712-021 | MANIFOLD,EXHAUST-WELDT | 1 | $157.95 | |
| 26 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 27 | 0639-382 | KIT, EXHAUST PKG/'90 PROWLER | 1 | $671.95 | |
| 29 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 31 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 32 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 33 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0623-157 | RETAINER NUT,1/4-20 | 1 | $3.85 | |
| 35 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 36 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 |
